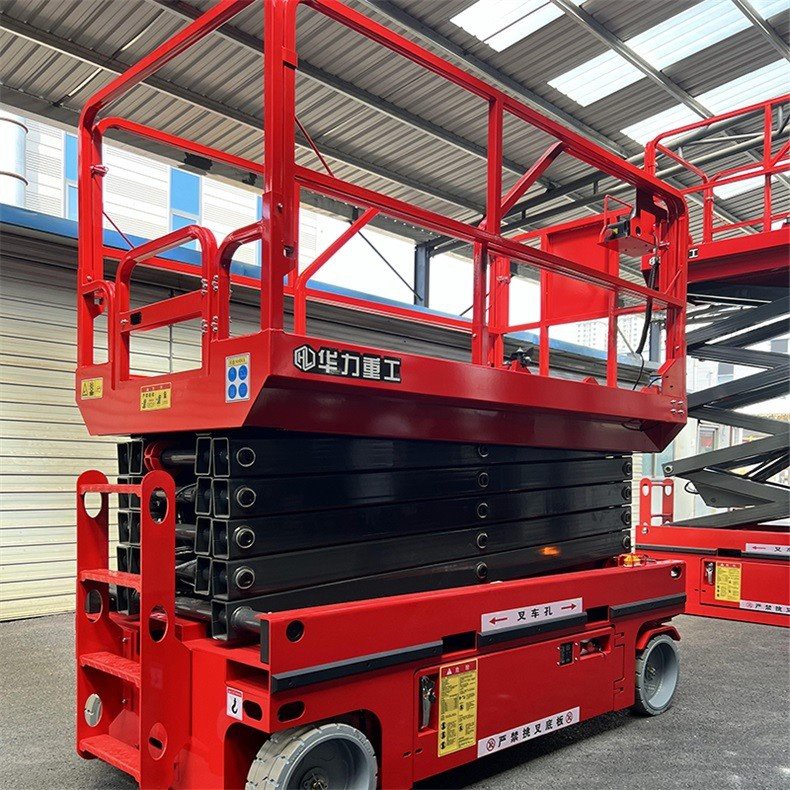

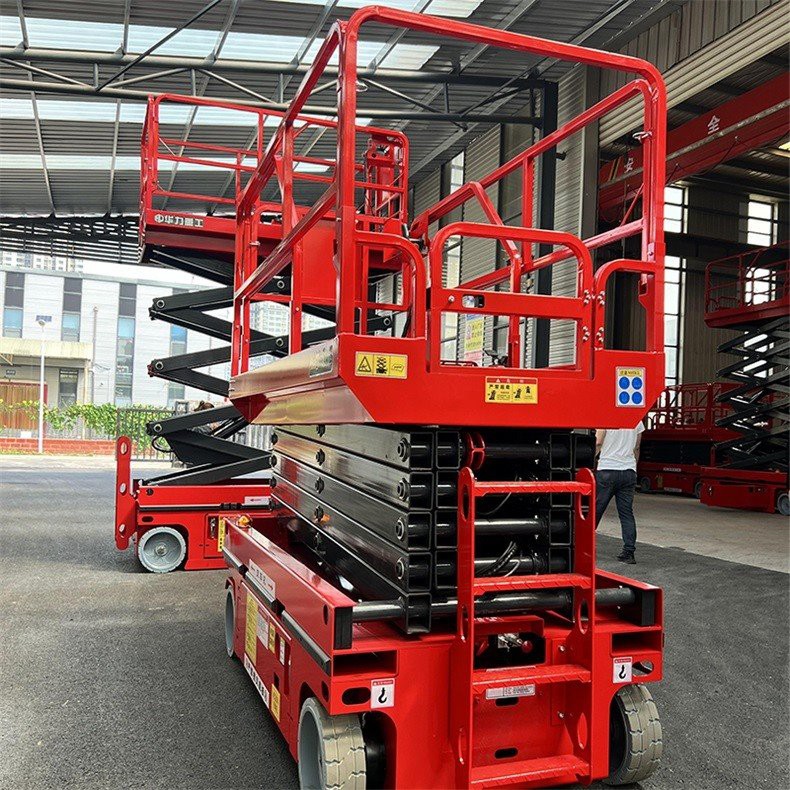

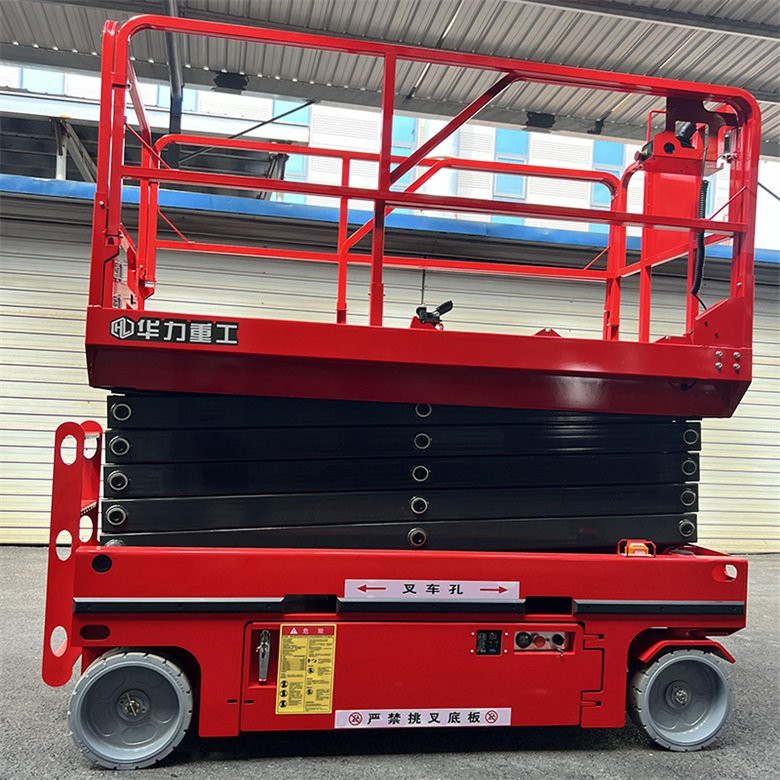

Product Introduction
This mobile self propelled electric scissor lift features self-propelled capabilities, making it suitable for a wide variety of working conditions; it requires no external power source and eliminates the need for manual towing. The unit remains fully mobile even when elevated, allowing the operator to control all functions directly from the platform. Forward and backward movement, steering, and lifting operations can all be executed from the platform enabling the machine to maneuver independently even when raised to its maximum height. It operates with minimal noise, ensuring a quieter working environment, and thanks to its wide-angle steering offers exceptional maneuverability.
Product Parameters
|

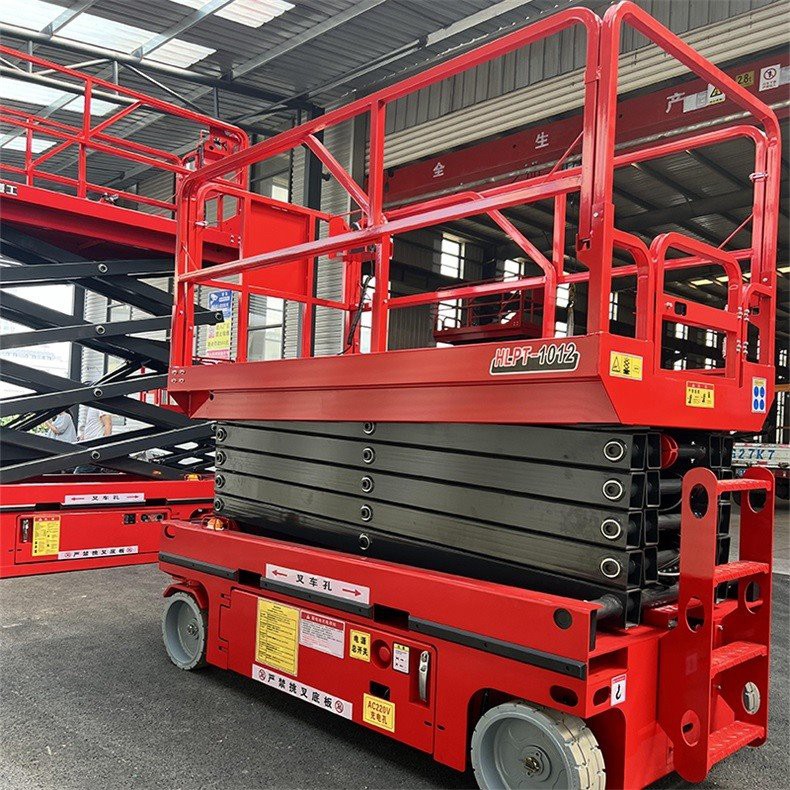

Model |
HLPT-1012 |
Wheelbase |
1.92m |
|
Safe working load |
320kg |
Minimum turning radius (inner wheel) |
0 |
|
Extended platform SWL |
100kg |
Minimum turning radius (outer wheel) |
2.35m |
|
Maximum working height (A) |
10m |
Lifting motor/driving motor |
24v/4.5kw |
|
Maximum platform height (B) |
12m |
Machine travel speed (retraction state) |
3.5km/h |
|
Overall length (C) |
2.46m |
Driving speed of machine (lifting status) |
0.8km/h |
|
Width of complete machine (D) |
1.18m |
Rise/Fall Speed |
4-6m/min |
|
Overall height (fence not folded) |
2.48m |
storage battery |
4*6V200Ah |
|
Overall height (fence folding) (E) |
1.97m |
charger |
24v/30A |
|
Platform dimensions (length x width (F)) |
2.3m*1.14m |
Max Climb Capability |
25% |
|
Platform extension size (G) |
0.9m |
Maximum allowable working angle (indoor/outdoor) |
3° |
|
Minimum ground clearance (retraction state) |
0.1m |
Tyre |
Φ381*127mm |
|
Minimum ground clearance (lifting status) |
0.02m |
Weight of complete machine |
2700kg |

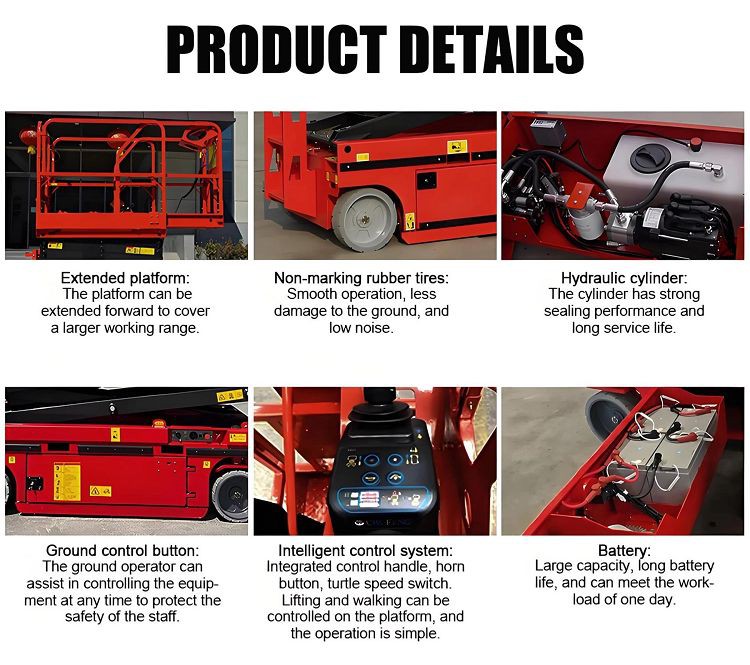

Product Details
Security assurance
1. The control voltage is 24V DC, ensuring safe operation.
2. The electrical control box features a waterproof design.
3. Equipped with an emergency stop button, allowing for immediate, one-touch shutdown in critical situations.
4. Features a self-locking function; the equipment automatically locks in the event of a sudden power failure.
5. Fitted with an emergency lowering valve, enabling the platform to descend safely even during a power outage.
6. Equipped with four hydraulic outriggers at the base, ensuring greater stability and steadiness during operation.
Product Application
Our mobile self propelled electric scissor lifts are suitable for a wide variety of applications, accommodating work at low, medium, and high altitudes. These include dockside cargo handling, overhead line maintenance, street light repairs, wall painting, curtain wall cleaning, high-branch tree trimming, as well as the installation and maintenance of outdoor air conditioning units.
Company Profile
Our Service
1.Presales Service: We provide complimentary on-site technical consultation and equipment configuration plans, with the option to customize exclusive product solutions tailored to your specific needs.
2.In-sales Service: We offer free guidance on installation and commissioning, as well as training on equipment operation and routine maintenance.
3.After-sales Service: We provide a one-year warranty on the complete machine and offer lifetime maintenance support; we conduct periodic follow-ups and provide free guidance on repairs.
4.Rapid Response: Our service team is available online 24 hours a day to quickly assist you in resolving any issues that may arise.
