Product Introduction
The steering of the small turning radius self propelled scissor lift is a two-way oil cylinder with sufficient steering power. It can walk and turn at high altitude without jamming. It can walk fast or slow in different working conditions. Only one person can operate the machine to continuously complete lifting, forward, backward, turning and other actions during aerial work. Compared with traditional hydraulic platforms, it greatly improves work efficiency and reduces the number of operators and labor intensity. It is particularly suitable for large-scale aerial continuous operations such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories and mines.
Product Parameters
|
Model |
HLPT-1214 |
Wheelbase |
1.92m |
|
Safe working load |
320kg |
Minimum turning radius (inner wheel) |
0 |
|
Extended platform SWL |
100kg |
Minimum turning radius (outer wheel) |
2.35m |
|
Maximum working height (A) |
14m |
Lifting motor/driving motor |
24v/4.5kw |
|
Maximum platform height (B) |
12m |
Machine travel speed (retraction state) |
3.5km/h |
|
Overall length (C) |
2.46m |
Driving speed of machine (lifting status) |
0.8km/h |
|
Width of complete machine (D) |
1.18m |
Rise/Fall Speed |
4-6m/min |
|
Overall height (fence not folded) |
2.60m |
storage battery |
4*6V200Ah |
|
Overall height (fence folding) (E) |
2.09m |
charger |
24v/30A |
|
Platform dimensions (length x width (F)) |
2.3m*1.14m |
Max Climb Capability |
25% |
|
Platform extension size (G) |
0.9m |
Maximum allowable working angle (indoor/outdoor) |
3° |
|
Minimum ground clearance (retraction state) |
0.1m |
Tyre |
Φ381*127mm |
|
Minimum ground clearance (lifting status) |
0.02m |
Weight of complete machine |
2950kg |
Product Details
Product features

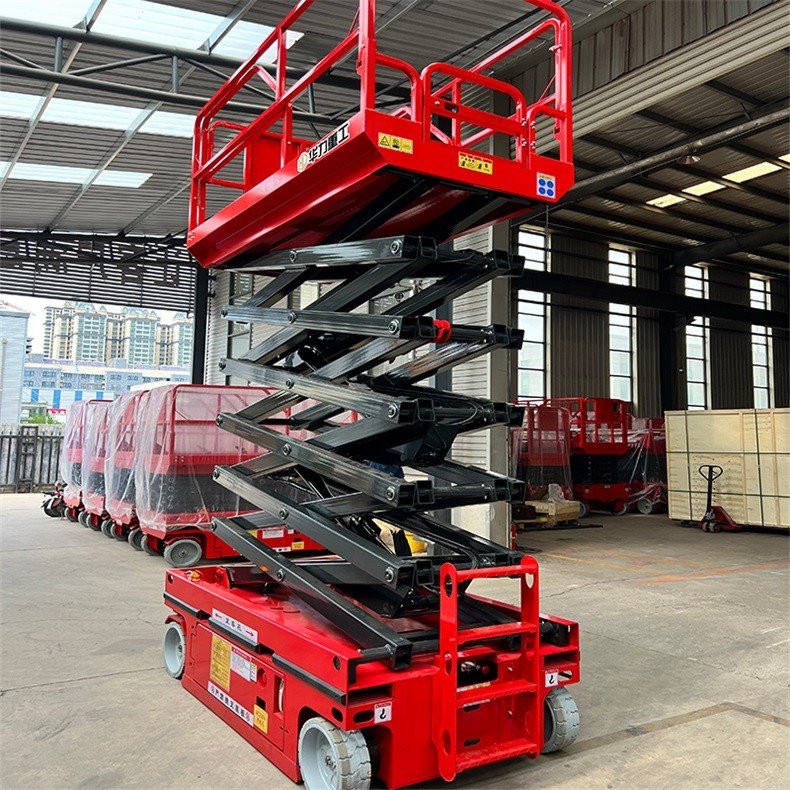

- Small Turning Radius Self Propelled Scissor Lift: 12m electric self propelled scissor lift for high altitude industrial work.
- Emergency Safety Function: Emergency lowering system ensures safe descent in case of power failure.
- Lifting Height & Power: 12m max lifting height and 24V electric drive system ensure stable performance.
- Industrial High Altitude: Ideal for factory equipment installation and warehouse high rack maintenance.
- OEM & Bulk Supply: Custom lifting height and color OEM service and bulk container supply available.
Product Application
Company Profile
Deliver,shipping and serving
FAQ
Q:Who are you?
A:We are a leading company in aerial work platforms with extensive production experience.Our facilities include spacious manufacturing areas and a strong R&D team.
Q:Why choose us?
A:Human-centric design - simple operation, intuitive controls, reliable after-sales support, and high efficiency.
Q:Do you offer customization services?
A:We offer customized products tailored to customer specifications.
Q:What is the MOQ(Minimum Order Quantity)?
A:The MOQ is one set. Most customers will choose one container of lift table/platform which could help to save cost. It will depend on your demand.
Q:How about the delivery time?
A:It will depend on the quantity customers ordered and be produced. Generally the delivery time is 7-10 days. If urgent order, please contact us directly,
Q:How about the after-sales services?
A;We provide 24/7 technical support accessible via email, phone, or online video.
