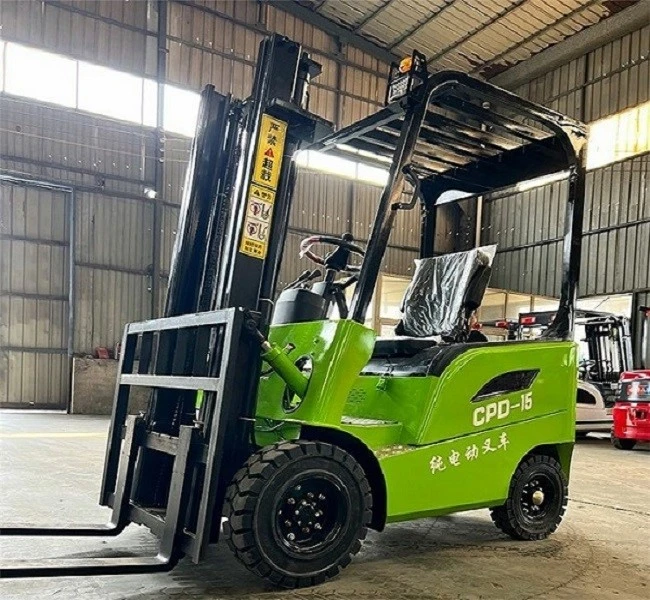

Electric Forklift

Product Overview

This industrial electric forklift series delivers zero-emission material handling engineered for multi-shift manufacturing plants, high-throughput distribution hubs, and high-density warehousing. Built around a rigid Q355B structural steel chassis and driven by high-efficiency AC induction motors, the platform eliminates internal combustion engine exhaust emissions while matching the hydraulic lift speeds and torque profiles of comparable diesel units. Designed for continuous indoor and sheltered outdoor operations, the unit integrates active thermal management systems to sustain performance across ambient temperatures ranging from -25 degrees Celsius in cold storage facilities to 40 degrees Celsius in heavy manufacturing floors.

First 12 Last 1/2

Key Features

Zero-Emission Operation:

Eliminates exhaust particulate emissions, carbon monoxide, and indoor ventilation requirements, reducing warehouse air filtration loads.

LiFePO4 Battery Integration:

Supports opportunistic charging from 0% to 80% within 2 hours, removing the requirement for dedicated battery-swapping rooms and specialized ventilation infrastructure.

Dual AC Motor Architecture:

Independent front-wheel AC drive motors provide zero-radius pivot turns and precise differential steering control in narrow aisles.

Regenerative Braking System:

Recovers kinetic energy during deceleration and mast lowering, returning power directly to the battery pack to extend shift runtime.

Ergonomic Operator Compartment:

Features an adjustable suspension seat, low-effort hydraulic control levers, and an integrated CAN-bus multifunction dash display.

Overhead Guard Safety Structure:

Certified to drop-test standards, providing structural protection against falling stock and impact loads.

Technical Specifications

Parameter	Specification (1.5 - 2.0 Ton Model)	Specification (2.5 - 3.5 Ton Model)	Specification (4.0 - 5.0 Ton Model)
Rated Load Capacity	1,500 kg to 2,000 kg	2,500 kg to 3,500 kg	4,000 kg to 5,000 kg
Load Center	500 mm	500 mm	600 mm
Standard Lift Height	3,000 mm (Duplex Mast)	3,000 mm (Duplex Mast)	3,000 mm (Duplex Mast)
Max Lift Height (Optional)	Up to 6,000 mm (Triplex)	Up to 6,500 mm (Triplex)	Up to 7,000 mm (Triplex)
Battery Voltage / Capacity	48V / 400Ah (Li-ion optional)	80V / 400Ah to 500Ah	80V / 600Ah to 700Ah
Drive Motor Power (AC)	2 x 4.5 kW	2 x 7.5 kW	2 x 10.0 kW
Lift Motor Power (AC)	9.0 kW	12.0 kW	16.0 kW
Travel Speed (Loaded/Unloaded)	14 / 16 km/h	15 / 17 km/h	16 / 18 km/h
Gradeability (Loaded)	15%	15%	14%
Turning Radius	1,580 mm	2,045 mm	2,280 mm

Working Principle / Operating System

The forklift operates on a closed-loop digital CAN-bus communication network linking the primary vehicle control unit, AC motor controllers, and proportional hydraulic valve blocks.

Power Delivery:

High-voltage DC power from the lithium battery bank is converted via dual inverter drives into variable-frequency 3-phase AC power for traction and pump motors.

Steering & Maneuvering:

Dual-drive motors rotate independently in opposite directions during tight turns, minimizing tire scrub and reducing right-angle stacking aisle requirements.

Proportional Hydraulics:

Load-sensing proportional control valves regulate oil flow from the gear pump to lift, tilt, and attachment cylinders, ensuring smooth mast staging and preventing hydraulic shock.

Thermal Regulation:

Built-in liquid cooling loops and passive aluminum heat sinks maintain controller operating temperatures below 75 degrees Celsius during continuous heavy-lifting cycles.

Main Component

Chassis & Frame:

Robotic-welded structural steel plate assembly normalized to relieve residual stress before precision CNC line boring.

Drive Axle & Transmission:

Integrated heavy-duty helical gear reduction box coupled directly to maintenance-free AC induction motors.

Mast Assembly:

Hot-rolled channel steel profiles with internal roller bearings designed to minimize lateral deflection under full eccentric loads.

Steering Axle:

Cast-steel oscillating steer axle with grease-sealed tapered roller bearings and double-acting hydraulic steering cylinders.

Braking System:

Wet multi-disc service brakes immersed in cooling oil, actuated hydraulically, coupled with an electromagnetic automatic parking brake.

Safety & Control

Operator Presence Sensing System:

Automatically disengages traction and hydraulic functions if the operator leaves the suspension seat for more than 2 seconds.

Mast Lowering Interlock:

Prevents hydraulic descent when the ignition key is switched off or battery power is disconnected.

Speed Reduction on Turns:

Automatically curtails maximum travel speed based on steering angle to prevent lateral tipping during high-speed cornering.

Emergency Disconnect Switch:

Ergonomically positioned red mushroom button instantly cuts all high-voltage power circuits in fault scenarios.

Overload Limiter:

Integrated hydraulic pressure sensor alerts the operator and locks out lift functions if rated load thresholds are exceeded.

Applications

High-Density Warehousing & Racking: Pallet put-away and retrieval in narrow-aisle selective and drive-in racking systems.

Cold Storage Facilities: Specialized low-temperature metallurgy and sealed electrical enclosures rated for continuous operation down to -25 degrees Celsius.

Automotive Component Assembly: Just-in-time material delivery of heavy stamping dies and sub-assemblies along shop-floor pathways.

Food & Beverage Distribution: Zero-emission handling of food-grade packaging where exhaust fumes or oil leaks cannot be tolerated.

Paper & Packaging Handling: Equipped with specialized hydraulic clamp attachments for vertical and horizontal paper roll tiering.

Manufacturing & Quality Control

Laser Cutting & CNC Machining:

Primary chassis plates cut with high-power fiber lasers and machined on multi-axis CNC horizontal boring mills to guarantee strict alignment tolerances.

Robotic Welding:

Structural frames assembled using automated robotic welding cells with weld seam inspection protocols on critical stress joints.

Powder Coating Surface Treatment:

Multi-stage zinc-phosphate immersion wash followed by electrostatic polyester powder coating cured at high temperatures for corrosion and environmental resistance.

Rigorous Factory Testing:

Every unit undergoes a full-load dynamometer test, hydraulic pressure spike verification, electrical insulation dielectric strength testing, and finished stability testing prior to crating.

Quality Management:

Manufactured under strict quality management systems and industrial safety directives.

Customization & OEM

Mast Configurations:

Custom duplex and triplex full-free-lift masts engineered for low-clearance container stuffing or high-reach multi-tier racking.

Battery Capacity Options:

Scalable battery compartments accommodating lead-acid or high-density LiFePO4 packs with integrated battery management telemetry.

Cabin Enclosures:

Modular steel or tempered glass cabins equipped with auxiliary heaters, defrosters, and windshield wipers for harsh outdoor environments.

Hydraulic Attachments:

Factory integration of side shifters, fork positioners, bale clamps, carton clamps, and paper roll rotators with auxiliary hydraulic valve sections.

Branding & Telematics:

Custom color matching, private-label options, and fleet management telematics modules for remote GPS tracking and diagnostic monitoring.

Technical Support & After-Sales Service

01.

Spare Parts Availability:

Global inventory dispatch of high-demand wear items and components within scheduled windows.

02.

Engineering Documentation:

Comprehensive shipment packages containing bilingual operator manuals, complete electrical schematics, hydraulic flow diagrams, and spare parts catalogs.

03.

Remote Diagnostic Support:

Onboard diagnostic ports enabling technicians to plug in service tools for parameter adjustment, fault code retrieval, and software updates.

04.

Warranty Coverage:

Comprehensive factory warranty covering drive motors, controllers, hydraulic pumps, and structural chassis integrity.

FAQ

Q: What is the typical battery lifespan and charging cycle count for the lithium-ion configuration compared to lead-acid?

A: The standard LiFePO4 battery configuration delivers 3,500 to 4,000 charge cycles while retaining high initial capacity, translating to multi-shift service years. Traditional lead-acid batteries yield fewer cycles and require daily watering and designated charging room ventilation.

Q: How does the unit handle steep loading dock ramps when fully loaded?

A: The multi-motor AC configuration provides reliable gradeability under full rated load. Additionally, anti-rollback integration automatically engages electromagnetic parking brakes on inclines when the accelerator pedal is released, preventing roll-back incidents.

Q: What is the standard lead time for standard stock units versus customized OEM fleet orders?

A: Standard catalog models ship within standard manufacturing windows from factory floor stock. Fully customized OEM orders involving special mast heights, cabin enclosures, or non-standard attachments require standard production and testing lead time adjustments.

Q: Are the electrical components protected against moisture in outdoor or wash-down environments?

A: All primary electronic control units, drive motors, and wiring harnesses feature high ingress protection ratings, utilizing sealed connectors and gasket enclosures to prevent water and dust ingress during outdoor transport or light wash-down procedures.

Q: What documentation is provided to satisfy local workplace safety and regulatory inspections?

A: Each forklift ships with official declarations of conformity, individual factory stability test certificates, serial-numbered load capacity charts, and comprehensive English operator and maintenance manuals.

Q: How are warranty claims and technical troubleshooting handled for international B2B buyers?

A: Warranty claims are processed directly through our engineering service desk. Replacement components are dispatched upon receipt of video or error-code diagnostic logs. For complex issues, our field service engineers provide remote video troubleshooting or coordinate with local authorized distributor service networks.
