Product Introduction
Our range of scissor lift aerial work platforms offers a comprehensive selection of lifting heights, including 4m, 6m, 8m, 10m, 12m, 14m, 16m, and 18m. Available with load capacities of either 300 kg or 500 kg, these units ensure safe and efficient operation.Constructed from high-strength steel, this machine features a four-wheel design for easy mobility. The spacious work platform boasts a robust load-bearing capacity, allowing multiple workers to perform tasks simultaneously. It is particularly well-suited for routine maintenance and inspection tasks in environments such as steel structure industrial facilities.
Product Parameters
|
Model |
HLPT-0810 |
Wheelbase |
1.92m |
|
Safe working load |
320kg/450kg |
Minimum turning radius (inner wheel) |
0 |
|
Extended platform SWL |
100kg |
Minimum turning radius (outer wheel) |
2.35m |
|
Maximum working height (A) |
10m |
Lifting motor/driving motor |
24v/4.5kw |
|
Maximum platform height (B) |
8m |
Machine travel speed (retraction state) |
3.5km/h |
|
Overall length (C) |
2.46m |
Driving speed of machine (lifting status) |
0.8km/h |
|
Width of complete machine (D) |
1.18m |
Rise/Fall Speed |
4-6m/min |
|
Overall height (fence not folded) |
2.36m |
storage battery |
4*6V200Ah |
|
Overall height (fence folding) (E) |
1.85m |
charger |
24v/30A |
|
Platform dimensions (length x width (F)) |
2.3m*1.14m |
Max Climb Capability |
25% |
|
Platform extension size (G) |
0.9m |
Maximum allowable working angle (indoor/outdoor) |
3° |
|
Minimum ground clearance (retraction state) |
01m |
Tyre |
Φ381*127mm |
|
Minimum ground clearance (lifting status) |
0.02m |
Weight of complete machine |
2450kg |

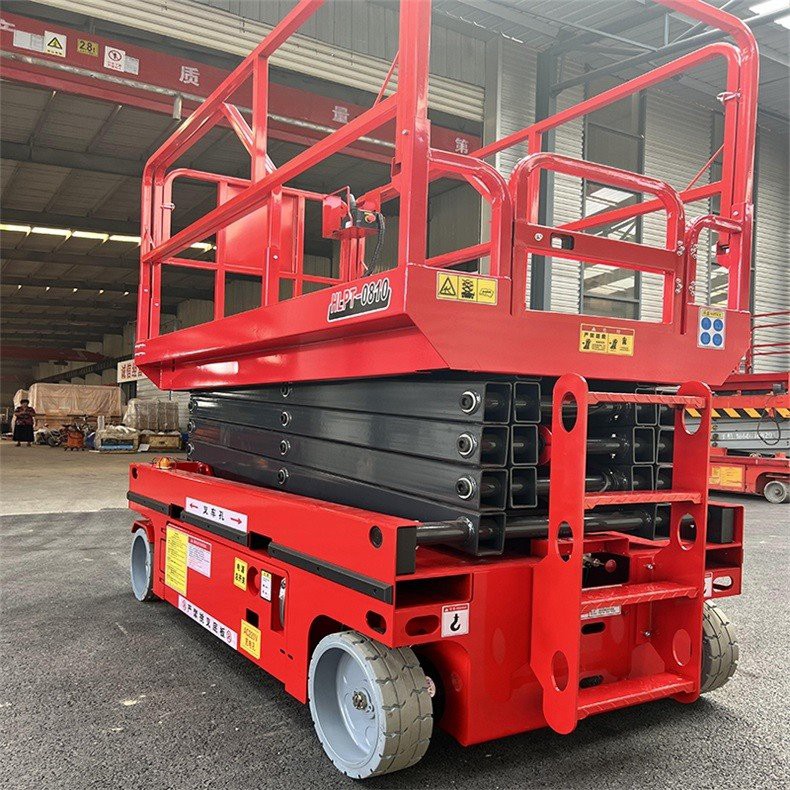

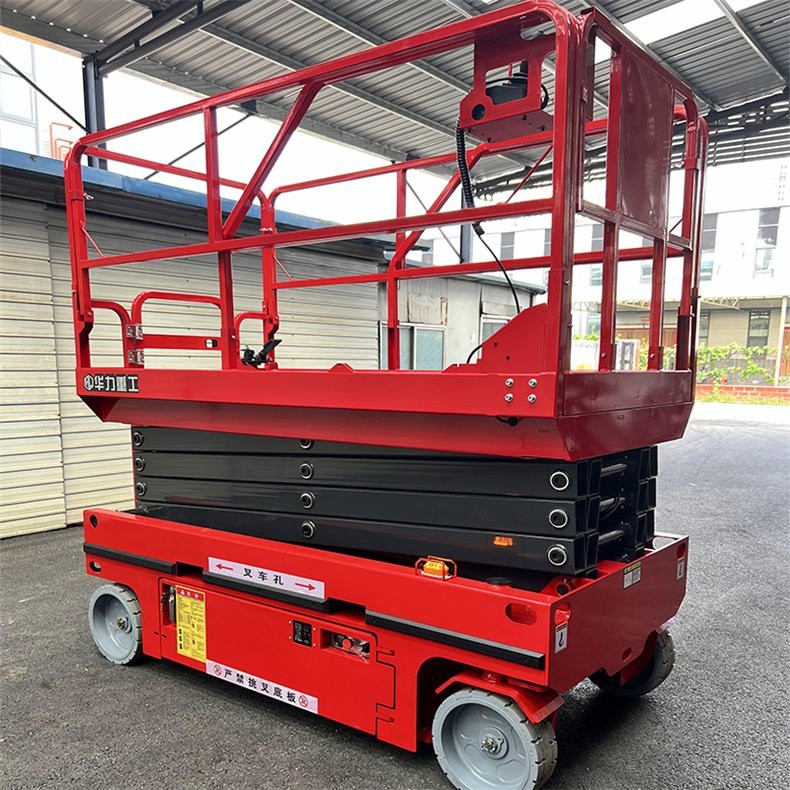

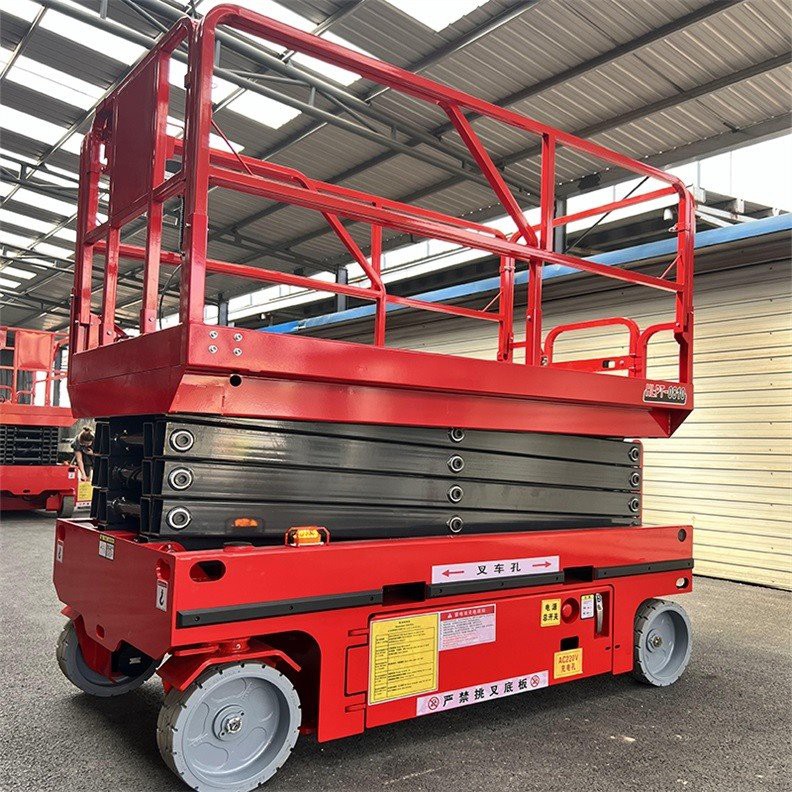

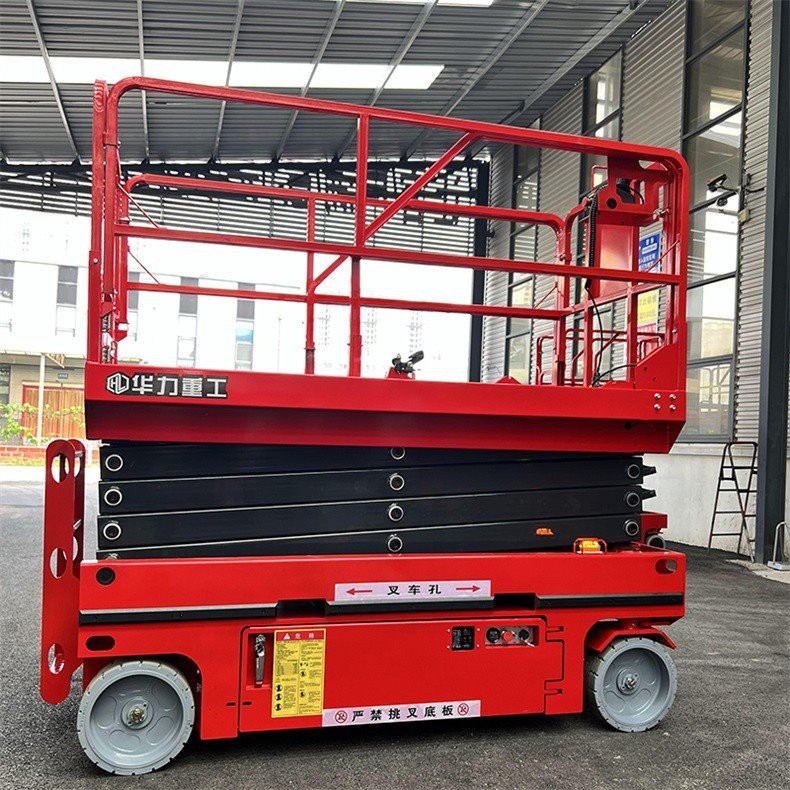

Product Details
Product features
1.The scissor lift aerial work platform can be operated and moved on the platform under the lifting state, which is more convenient and flexible for operation and use.
2. Extendable platform can be quickly spread out to the working point.
3. Foldable guardrail reduces the space occupation of the whole machine.
4. The minimum turning radius (0m inside the wheel) and compact design make it easy to operate in a small space.
5.25% climbing ability, able to climb slope smoothly.
6. Rotary chassis for easy maintenance.
7. Fault code display automatically for convenient maintenance.
Product Application
Company Profile
Deliver,shipping and serving
FAQ
Q: Are you the original manufacturer?
A: Yes, we are the manufacturer of the construction machinery ourselves.
Q: How long is the warranty period for the machine?
A: The entire machine comes with a one-year warranty.
Q: What should we do if the machine malfunctions?
A: You can record a video of the malfunction and send it to us; our technical staff will first help you diagnose the problem remotely via the video.
Q: What should I do if the machine breaks down after extended use?
A: If you discover a fault with the machine, simply record a video and send it to me; I will help you analyze and resolve the issue so that your operations are not interrupted.
Q: What should we do if specific components get damaged?
A: We recommend keeping a stock of common wear-and-tear parts on hand in advance, based on your local operating conditions. If other parts fail, we can ship replacements to you via sea or air freight.
Q: Can we apply our company's brand logo to the machine?
A: Yes, absolutely. We support OEM/ODM branding and customization partnerships.
