Product Introduction

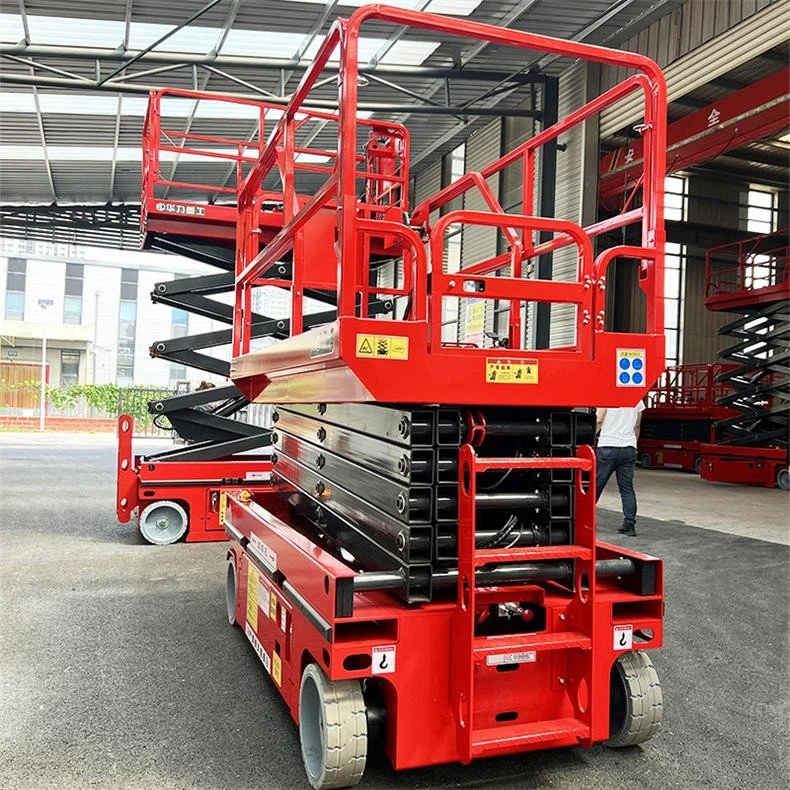

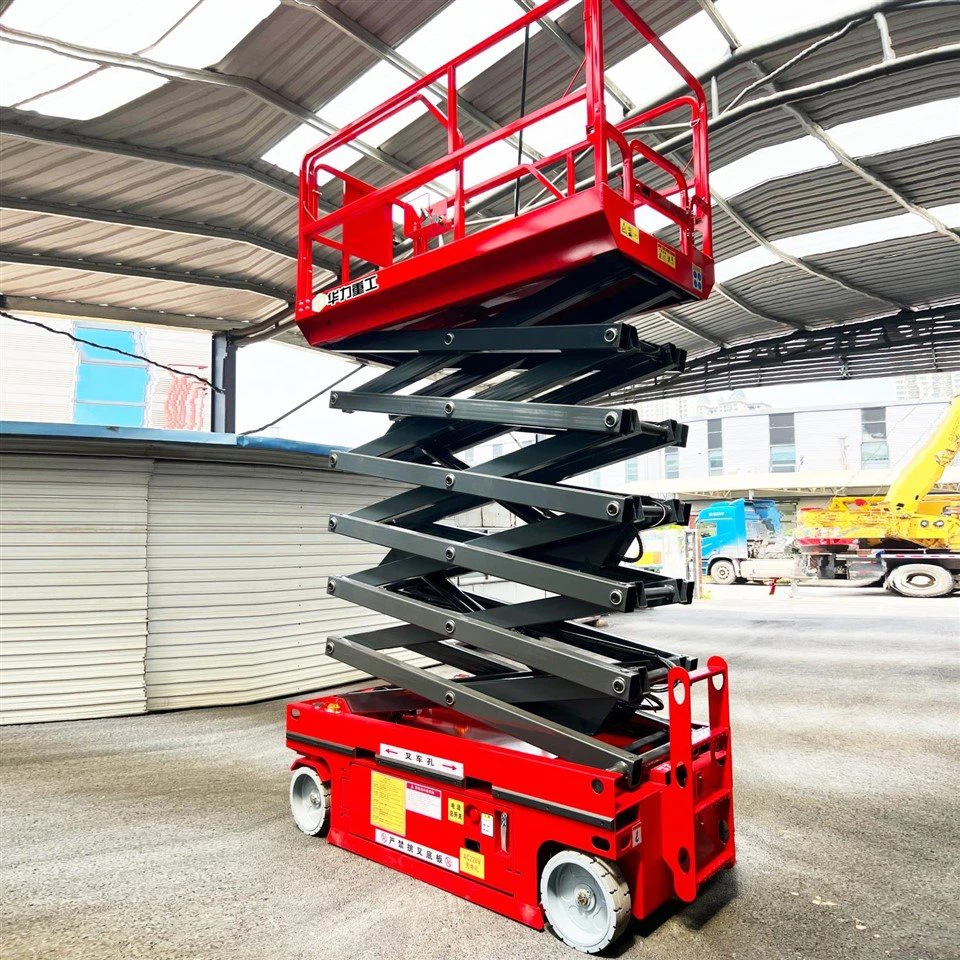

This self propelled steel scissor lift is electrically driven, offering smooth, quiet, and emission-free operation that makes it ideal for use in both indoor and outdoor environments.Its scissor mechanism features a reinforced structure, ensuring exceptional stability even when fully extended to its maximum height; operators can directly drive the unit and control the lifting functions from the platform itself.This product series offers working heights ranging from 4 to 20 meters, with all models fully compliant with CE and ISO standards, thereby guaranteeing safety and reliability.
Product Parameters
|
Model |
HLPT-1214 |
Wheelbase |
1.92m |
|
Safe working load |
320kg |
Minimum turning radius (inner wheel) |
0 |
|
Extended platform SWL |
100kg |
Minimum turning radius (outer wheel) |
2.35m |
|
Maximum working height (A) |
14m |
Lifting motor/driving motor |
24v/4.5kw |
|
Maximum platform height (B) |
12m |
Machine travel speed (retraction state) |
3.5km/h |
|
Overall length (C) |
2.46m |
Driving speed of machine (lifting status) |
0.8km/h |
|
Width of complete machine (D) |
1.18m |
Rise/Fall Speed |
4-6m/min |
|
Overall height (fence not folded) |
2.60m |
storage battery |
4*6V200Ah |
|
Overall height (fence folding) (E) |
2.09m |
charger |
24v/30A |
|
Platform dimensions (length x width (F)) |
2.3m*1.14m |
Max Climb Capability |
25% |
|
Platform extension size (G) |
0.9m |
Maximum allowable working angle (indoor/outdoor) |
3° |
|
Minimum ground clearance (retraction state) |
0.1m |
Tyre |
Φ381*127mm |
|
Minimum ground clearance (lifting status) |
0.02m |
Weight of complete machine |
2950kg |

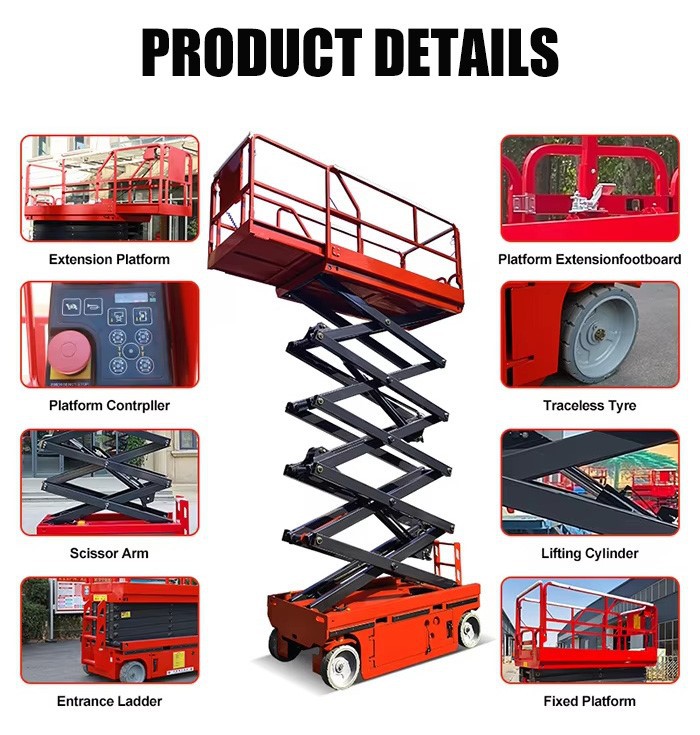

Product Details
Product features
Strong and safe guardrail
This foldable guardrail is made of heavy-duty manganese steel and simple to install. Its thickened structure provides better protection during work.
Powerful and long-lasting
The hydraulic cylinder uses top-quality parts. It seals tightly, performs well in high temperatures, and has a long service life.
Simple, safe operation
The control panel comes with a power switch, emergency stop, handle control, and lift buttons. All functions are straightforward and ensure safe operation.
Floor-safe design
These specially made non-marking rubber tires will not scratch or damage any flooring.
Product Application
Company Profile
We offer customizable electric scissor lifts with platform heights from 4m to 18m, and support OEM, ODM and global exports.
As a factory, we have great cost control and strict quality assurance. At the same time, we have the flexible service and export experience of a trading company.
We provide our customers with one-stop service, from product selection and ordering to international shipping and logistics.
Deliver,shipping and serving
All components of the self propelled steel scissor lift have been packaged, and the entire unit has been wrapped in a waterproof film. Subsequently, the complete machine was loaded into a standard wooden crate; to enhance structural integrity, steel pipe supports were installed at both the top and bottom of the crate.
