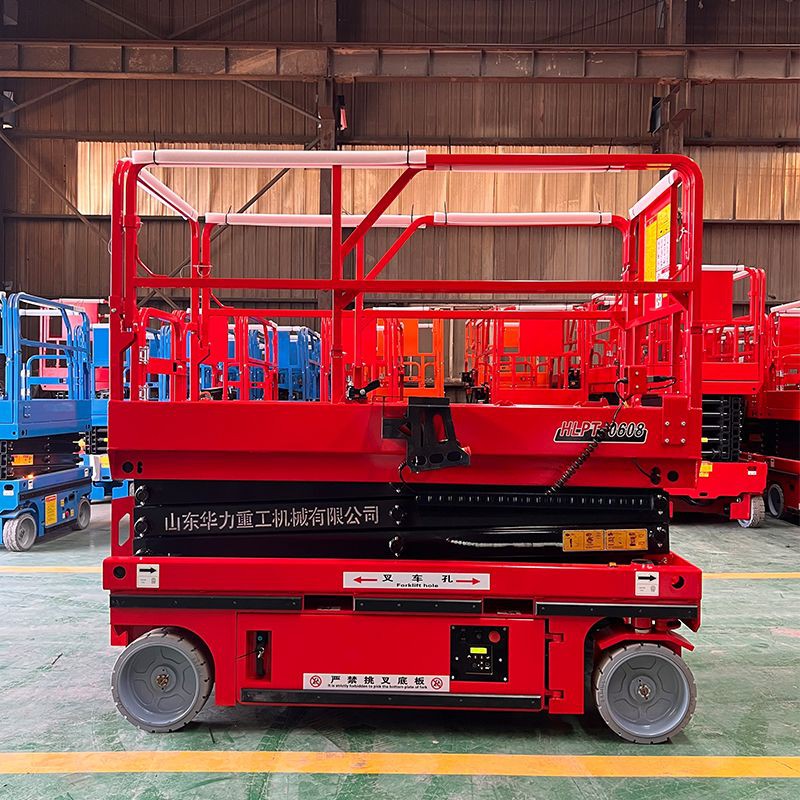

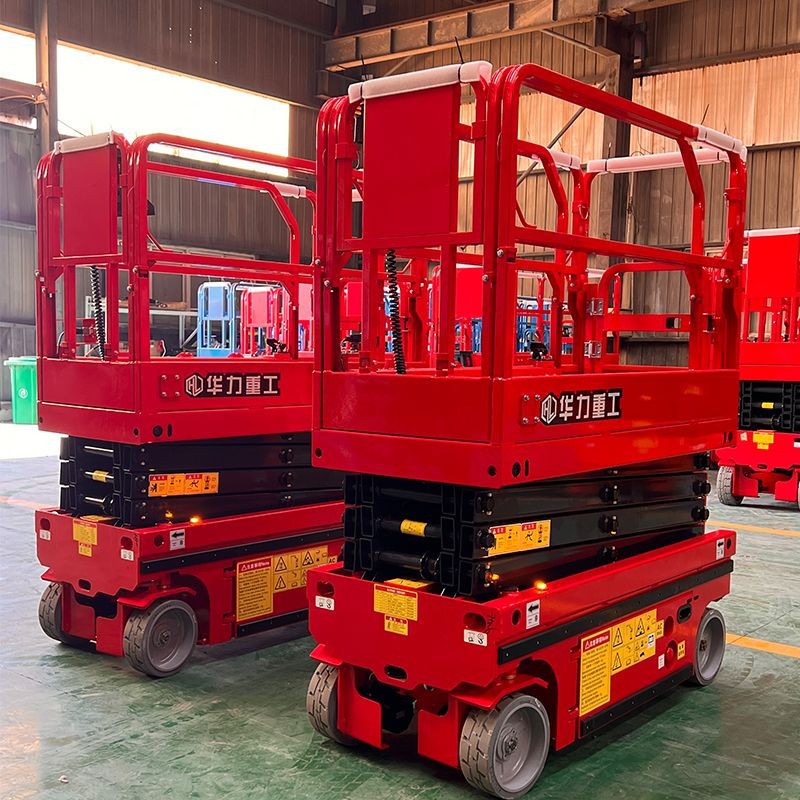

Self Propelled Mobile Scissor Lift







This CE- and ISO-certified self propelled mobile scissor lift is primarily designed to elevate personnel to heights, facilitating tasks such as maintenance, servicing, cleaning, and installation.
1.A wide range of working heights is available including 4m, 6m, 8m, 10m, 12m, 14m, 16m, and 18m with a rated load capacity ranging from 300kg to 320kg, making it suitable for use in diverse operational environments.
2. It features a widened pivot arm structure paired with heavy-duty scissor arms, ensuring enhanced stability and safety for workers during operations.
The use of scissor arms with larger cross-sections provides operators with a more secure and steady working platform.
3.Equipped with a 0.9-meter extendable platform, the platform length can be adjusted to suit specific operational requirements.
4.Designed with a convenient battery drawer, facilitating easy access for routine maintenance and battery replacement.





Model	HLPT-0608	Wheelbase	1.92m
Safe working load	320/450kg	Minimum turning radius (inner wheel)	0
Extended platform SWL	100kg	Minimum turning radius (outer wheel)	2.35m
Maximum working height (A)	8m	Lifting motor/driving motor	24v/4.5kw
Maximum platform height (B)	6m	Machine travel speed (retraction state)	3.5km/h
Overall length (C)	2.46m	Driving speed of machine (lifting status)	0.8km/h
Width of complete machine (D)	1.18m	Rise/Fall Speed	4-6m/min
Overall height (fence not folded)	2.24m	storage battery	4*6V/200Ah
Overall height (fence folding) (E)	1.73m	charger	24v/30A
Platform dimensions (length x width (F))	2.3m*1.14m	Max Climb Capability	25%
Platform extension size (G)	0.9m	Maximum allowable working angle (indoor/outdoor)	3°
Minimum ground clearance (retraction state)	0.1m	Tyre	Φ381*127mm
Minimum ground clearance (lifting status)	0.2m	Weight of complete machine	2100kg









* High-Quality Steel Structure

The self-propelled mobile scissor lift is constructed from high-strength manganese steel rectangular tubing, ensuring a long service life.

* Robust Structural Design

The equipment consists of a base, a scissor mechanism, and a work platform. The base is fabricated from welded steel plates; combined with the scissor mechanism, it ensures enhanced stability during operation.

* Anti-Fall Safety System

Equipped with a built-in anti-fall safety device to prevent accidents caused by hydraulic line failure.

* Emergency Lowering Valve

Features a manual lowering valve, allowing the platform to be manually lowered in the event of a sudden power outage.

* Imported Components

The hydraulic cylinders undergo a precision grinding process, and the seals are sourced from imported brands, ensuring superior sealing performance for the cylinders.

* Safety Guardrails

The platform guardrails stand approximately 1100mm high, providing enhanced safety for personnel during operations.











Huali is a comprehensive company engaged in elevator manufacturing, sales and after-sale.All products are engineered with safety, durability, and user-friendliness in mind, and comply with international standards such as CE and ISO 9001. We support full customization from voltage and load capacity to color, dimensions, and branding ensuring seamless integration into diverse global markets.









Before shipment, we conduct multiple inspections of the products and pack them with meticulous care to ensure that every piece of equipment reaches you in perfect condition.
