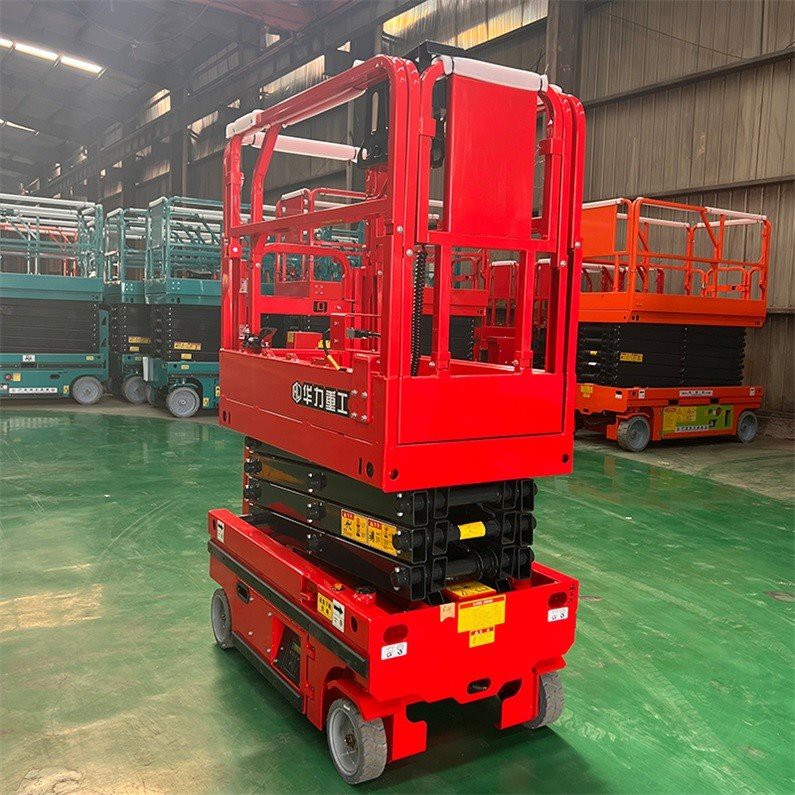

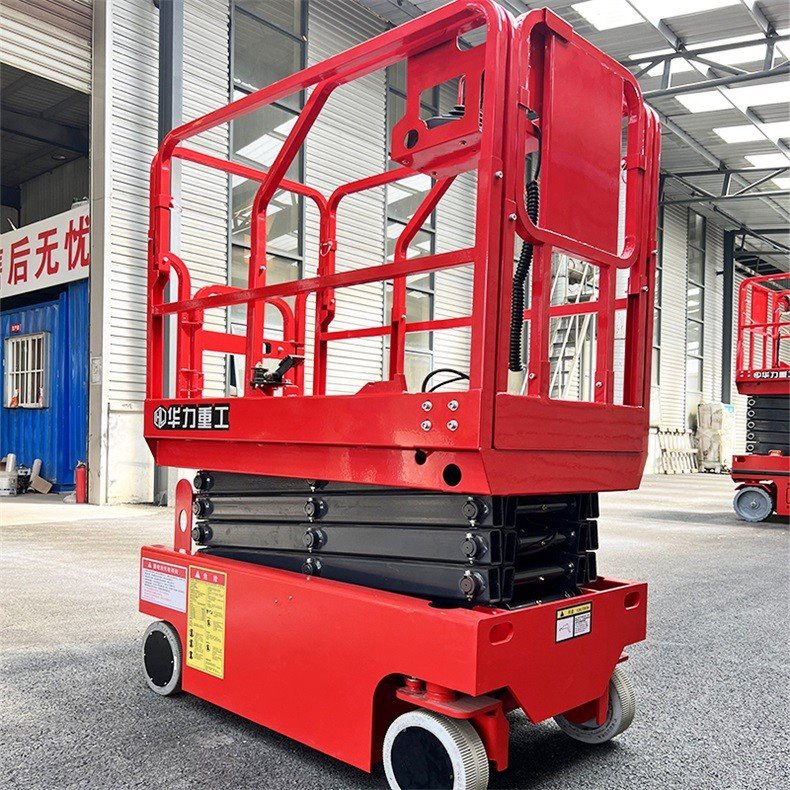

Product Introduction
The wheeled self propelled scissor lift is a versatile lifting device capable of autonomous movement, steering, and lifting operations. It boasts high operational efficiency, a low susceptibility to mechanical failure, and flexible speed control. Both movement and lifting functions are entirely powered by electric motors, ensuring a stable and reliable power supply.
Product Parameters
|
Model |

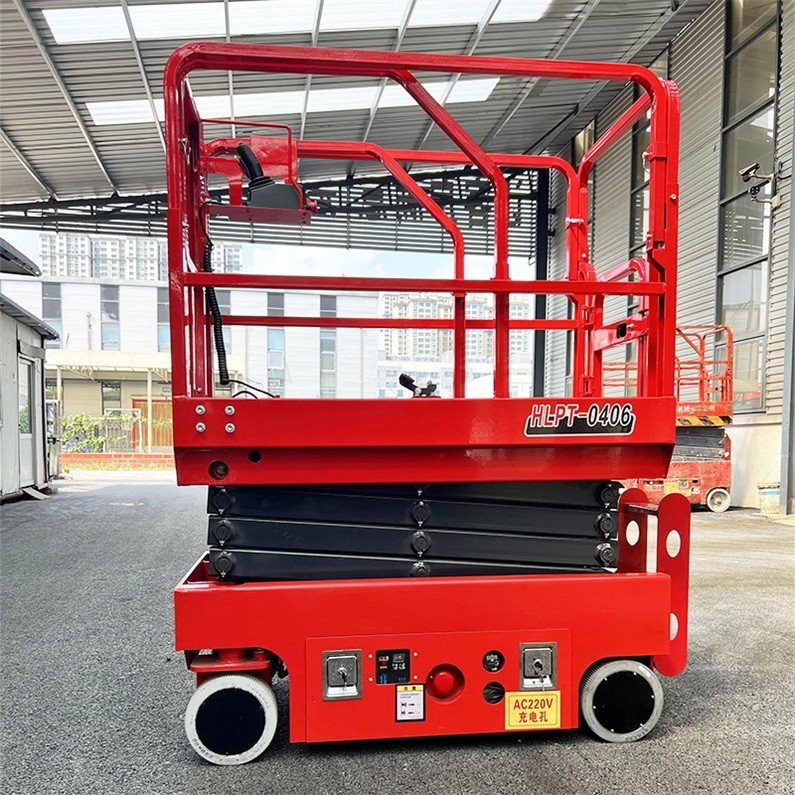

HLPT-0406 |
Wheelbase |
1.5m |
|
Safe working load |
230kg |
Minimum turning radius (inner wheel) |
0 |
|
Extended platform SWL |
100kg |
Minimum turning radius (outer wheel) |
1.20m |
|
Maximum working height (A) |
6m |
Lifting motor/driving motor |
24v/1.6kw |
|
Maximum platform height (B) |
4m |
Machine travel speed (retraction state) |
3.5km/h |
|
Overall length (C) |
1.46m |
Driving speed of machine (lifting status) |
0.5km/h |
|
Width of complete machine (D) |
0.76m |
Rise/Fall Speed |
4-6m/min |
|
Overall height (fence not folded) |
2.5m |
storage battery |
2×12V/80Ah |
|
Overall height (fence folding) (E) |
1.49m |
charger |
24v/15A |
|
Platform dimensions (length x width (F)) |
1.3m*0.7m |
Max Climb Capability |
25% |
|
Platform extension size (G) |
0.6m |
Maximum allowable working angle (indoor/outdoor) |
3° |
|
Minimum ground clearance (retraction state) |
0.06m |
Tyre |
Φ230*80mm |
|
Minimum ground clearance (lifting status) |
0.015m |
Weight of complete machine |
800kg |
Product Details

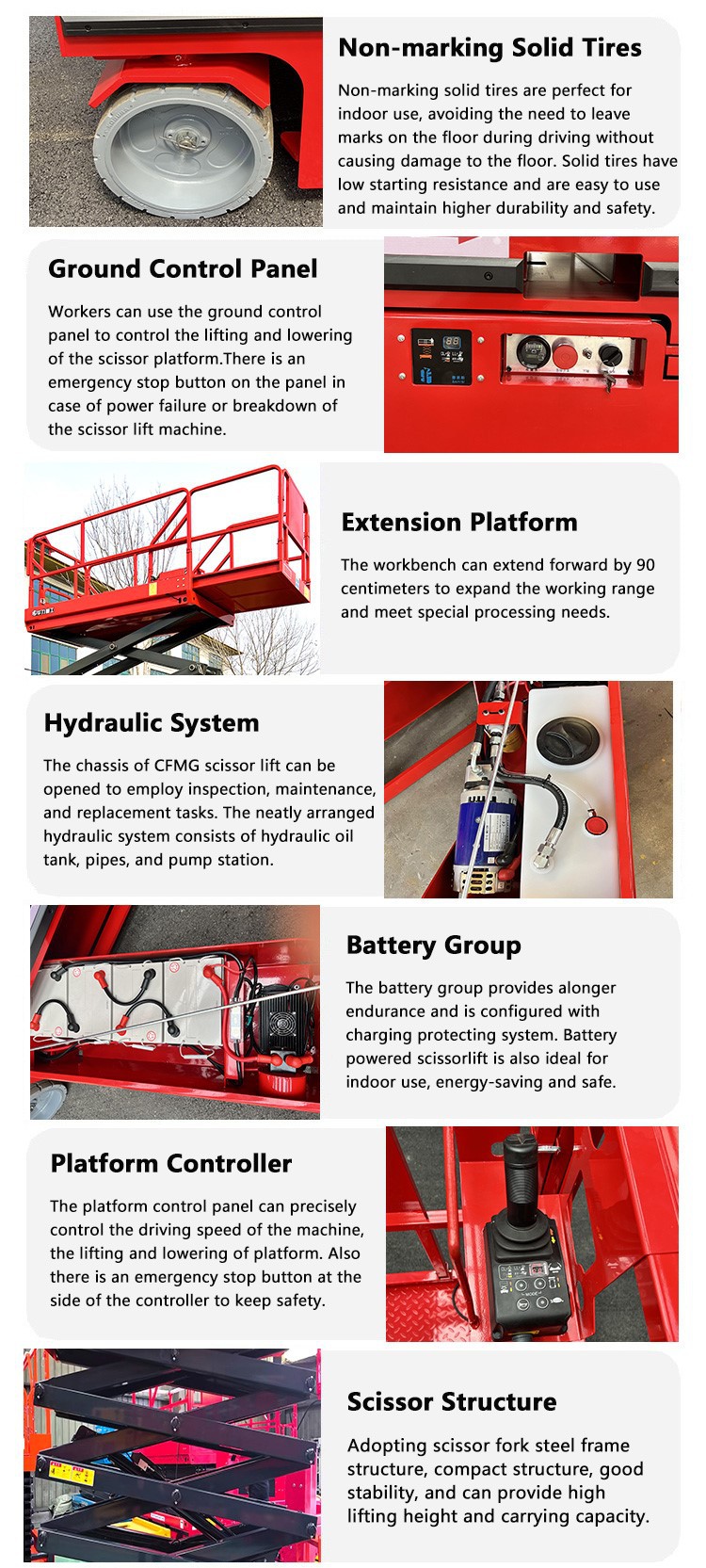

Product features
- Spacious Work Area: The work platform can be extended on one or both sides, providing an expanded workspace.
- Foldable Guardrails: The guardrails can be folded down or removed, reducing the overall height of the equipment for easier transportation.
- Quiet and Eco-Friendly Design: Battery-powered operation ensures low noise levels and zero emissions.
- Customizable Colors and Configurations: The body color, platform dimensions, safety guardrails, and extension platforms can all be freely selected to meet specific requirements.
Product Application
Company Profile
Deliver,shipping and serving
Secure receipt of goods:In order for our customers to receive new and intact goods, we will check the products many times before delivery, and carry out multiple layers of protection and reinforcement.
