Product Introduction
Product advantages

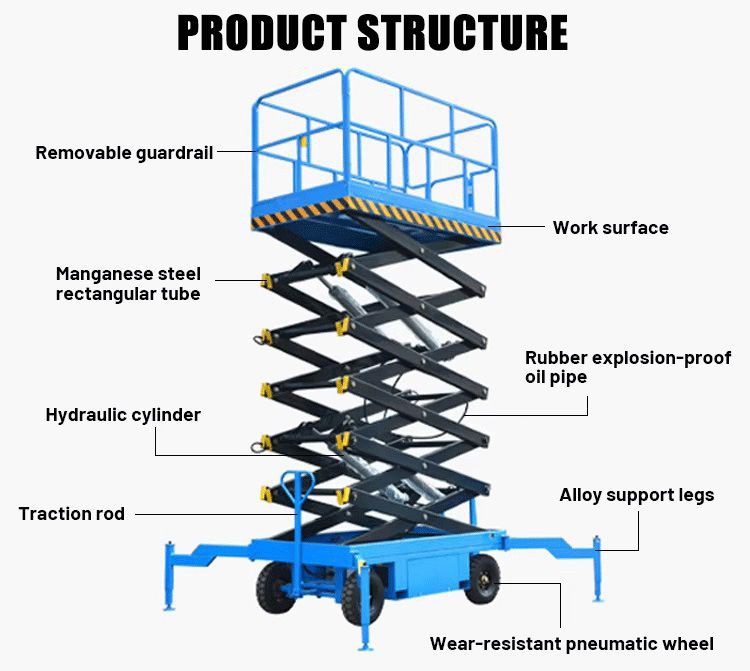

Strong and stable scissor structure Designed with high-strength steel, warehouse electric scissor lift providing excellent stability and smooth vertical lifting during operation.
High load capacity Capable of carrying multiple operators and tools, improving working efficiency at height.
Spacious working platform Large platform area allows operators to work comfortably and safely.
Easy and user-friendly operation Simple control system with clear functions, suitable for both experienced and first-time operators.
Multiple safety protection systems Equipped with emergency stop button, overload protection, safety guardrails, and limit switches to ensure safe operation.
Reliable hydraulic lifting system Stable hydraulic system ensures smooth lifting, low noise, and long service life.
Durable and low-maintenance design High-quality components reduce maintenance frequency and operating costs.
Wide range of applications Ideal for warehouse maintenance, equipment installation, factory operations, and construction work.
Product Parameters
|
Equipment model |
HLPT-1416 |
Rise |
14m |
|
Platform countertop |
2800*1500mm |
Size |
3000*1720*1750mm |
|
Load |
500KG |
Dead weight |
2400KG |
|
Tyre |
500-8 Inflatable |
Power/ Voltage |
3.0kw/380v |
|
Hydraulic cylinder |
4 HSG 80/50 |
Lifting speed |
Rise 4-6 meters/minute,adjustable descent speed |
|
Scissor fork support rod |
160*80*3.75mm Q500 manganese steel |
Hydraulic tubing |
2-10-43MPa double-layer steel mesh high-pressure oil pipe |
|
Hydraulic oil |
Winter 32 # Summer 46 #Great Wall Anti Wear Hydraulic Oil |
Pumping station |
Anshan Lisheng |
|
Switch |
Delixi |
Electric appliance |
Distribution box/travel switch (People's sign) |
|
Leg support |
120*50*4mm |
Rust prevention treatment |
Shot blasting and sandblasting rust removal treatment |
|
Chassis |
120*60*3.75mm |
Spray treatment |
Electrostatic powder spraying |
Product Details
Product Application
Warehouse electric scissor lift is mainly used for the installation and maintenance of star hotels, modern factories, business halls, hotels, lobbies, restaurants, stations, exhibition halls, shopping malls and other narrow spaces.
Company Profile
Deliver,shipping and serving
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional manufacturer located in Jinan, Shandong, China. All products are made in our own factory with strict quality control.
Q: What is your lead time?
A: Usually 7–15 working days after receiving the deposit. For custom orders or large quantities, please contact us for a specific delivery schedule.
Q: Can your machines be customized?
A: Yes, we support full customization of platform size, lifting height, load capacity, voltage, color, etc., according to your needs.
Q: What kind of warranty do you offer?
A: We provide a 12-month warranty for all our products. During this period, free spare parts and technical support are available for non-human damage.
Q: How do I install and operate the machine?
A: We provide detailed user manuals and operation videos. Online guidance is available via Whats App or video call.
