10m Scissor Lift Platform
Our 10m scissor lift platform is a fully self-propelled electric aerial work solution designed for safe, efficient, and flexible high-altitude operations. Engineered for both indoor and outdoor commercial and industrial use, this 10-meter scissor lift delivers a maximum working height of 10 meters and stable load-bearing performance, solving the height access challenges for building maintenance, equipment installation, cleaning, and construction finishing work.
Product Parameters
Below are the standardized and practical technical specifications of our 10m electric scissor lift platform, covering core performance, dimension, power and safety parameters to meet customer project bidding and equipment matching needs.
|
Item
|
Specification
|
|---|---|
|
Max Working Height
|
10m (32.8ft)
|
|
Max Platform Height
|
8m (26.2ft)
|
|
Rated Load Capacity
|
230kg (2 persons + tools)
|
|
Platform Size
|
2200×900mm
|
|
Overall Dimension
|
3200×1150×2150mm (folded)
|
|
Drive Mode
|
Full electric self-propelled
|
|
Lifting Power
|
Hydraulic electric lifting
|
|
Travel Speed
|
0-4km/h (adjustable)
|
|
Gradeability
|
25%
|
|
Working Temperature
|
-20℃ ~ +45℃
|
|
Battery Configuration
|
4×12V maintenance-free battery
|
|
Continuous Working Time
|
6-8 hours
|
|
Charging Time
|
8-10 hours full charge
|
|
Noise Level
|
≤70dB (silent operation)
|
|
Total Weight
|
2100kg
|
Product Details
Every detail of the 10m scissor lift platform is optimized for on-site usability, durability and safety, solving common pain points of traditional lifting equipment such as easy damage, unstable lifting, inconvenient movement and single protection.

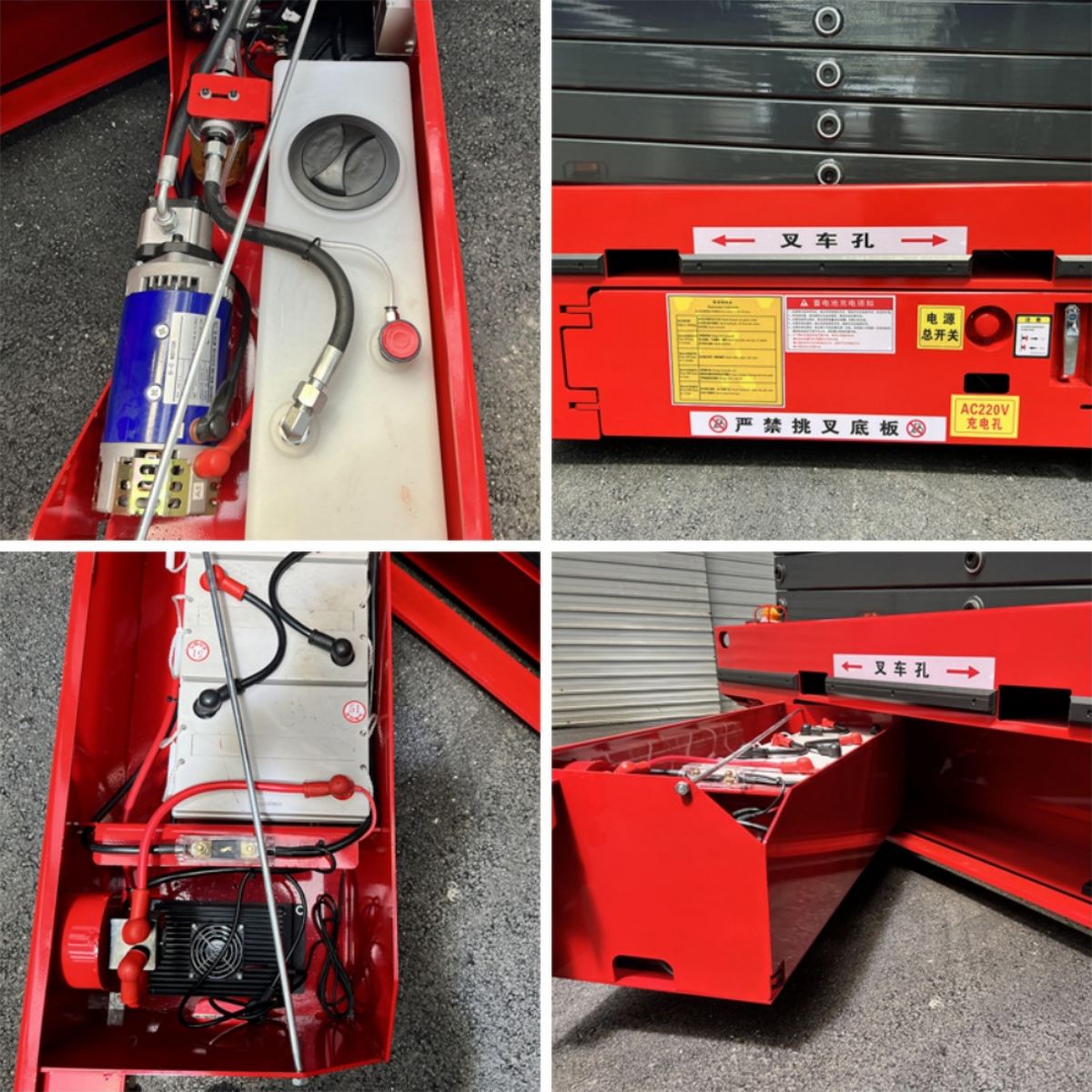

High-Strength Scissor Arm Structure: The scissor arms are forged with thickened manganese steel plates, with integrated welding process and stress relief treatment. The overall structure is firm and not easy to deform, ensuring stable lifting without jitter even under full load, and adapting to long-term high-frequency industrial operation.
Precision Hydraulic Lifting System: Equipped with industrial-grade silent hydraulic cylinder and imported sealing parts, the lifting process is smooth and steady without oil leakage. The built-in hydraulic buffer device realizes slow start and slow stop, effectively avoiding platform shaking and protecting construction personnel and equipment safety.
Full Safety Protection Design: It is equipped with standard anti-tilt support legs, overload automatic alarm, emergency stop button, platform guardrail, and low battery protection. Once the equipment tilts abnormally or is overloaded, the system will automatically cut off the lifting power to prevent safety accidents. The surrounding high guardrail effectively prevents personnel and tool falling.
Flexible Mobile Chassis: Adopts solid non-marking rubber tires, which are wear-resistant and pressure-resistant, no damage to indoor floor, no noise during walking. The universal steering wheel and self-propelled driving design make the equipment turn flexibly, move freely in narrow spaces, and greatly improve construction efficiency.
Product Usage Scenarios
The 10m electric scissor lift features compact size, flexible movement, safe operation and zero emission, covering almost all indoor and outdoor medium-height aerial work scenarios. It is a universal aerial work platform widely used in construction, commercial, industrial and public facility fields.
Building Construction & Renovation: Suitable for high-altitude wall painting, ceiling installation, pipeline laying, electrical wiring, wall cleaning and renovation of new buildings, workshops and office buildings. It replaces traditional ladders and scaffolding, greatly improving construction safety and efficiency.
Industrial Workshop Maintenance: Used for daily maintenance, repair and replacement of factory overhead equipment, ventilation pipes, lighting circuits and workshop ceiling facilities. The silent and zero-emission design does not affect normal workshop production, suitable for long-term regular maintenance work.
Warehouse & Logistics Operation: Ideal for high shelf installation, goods sorting, shelf maintenance and warehouse lighting maintenance in large warehouses and logistics centers. The stable load-bearing and flexible movement meet the frequent height access needs of warehouse daily operation.
Commercial Venue Maintenance: Applicable for ceiling cleaning, lamp replacement, billboard installation and maintenance, and indoor decoration of shopping malls, supermarkets, exhibition halls, hotels and airports. Low noise and no pollution will not affect business operation and customer experience.
Public Facility Engineering: Widely used for street lamp maintenance, traffic monitoring installation, community facility maintenance, park landscape engineering and municipal engineering construction. It can adapt to complex outdoor flat ground and temporary construction environments.
Packaging and Delivery
We adopt standardized export packaging and professional logistics solutions for 10m scissor lift platforms to ensure intact equipment delivery and meet global customers' sea and land transportation needs.
Standard Export Packaging: Before packaging, all equipment will be comprehensively inspected for appearance and performance. The whole machine is wrapped with waterproof and dust-proof plastic film, fixed with anti-collision wooden frame or iron frame, and the key parts such as hydraulic cylinder and control panel are protected by thickened foam to avoid collision, scratch and moisture damage during transportation. All exposed metal parts are coated with anti-rust oil for long-distance sea transportation.
Diversified Delivery Methods: For small batch orders, we support LCL sea freight, air freight and express delivery; for bulk orders, we adopt full container loading (20GP/40GP/40HQ) to save transportation cost. We support global port delivery and door-to-door delivery services, covering Southeast Asia, Europe, America, Africa and Oceania.
Strict Pre-Shipment Inspection: Each batch of goods will be inspected by professional QC personnel before delivery, including equipment lifting performance, walking function, safety protection system and appearance quality, and provide complete delivery documents, inspection reports and customs clearance materials to ensure smooth customer customs clearance.
Product Certification
All our 10m scissor lift platforms have passed international authoritative safety and quality certifications, meeting global industrial use standards and export requirements, with reliable quality and qualified formalities.
Core Authoritative Certifications: CE certification (EU mandatory safety certification), ISO9001 international quality management system certification, ISO14001 environmental management system certification, occupational health and safety management system certification. The products fully comply with EU mechanical safety standards and global industrial equipment use specifications.
Quality Inspection Qualification: Each batch of products has factory inspection reports, performance test reports and safety test reports, with complete product qualification certificates. All equipment parameters and safety indicators meet international standards, supporting customer project bidding, government engineering access and overseas market sales.
Standardized Production Certification: The factory has passed standardized production enterprise certification, all production links comply with international industrial standards, and product quality is traceable, ensuring that every delivered equipment is high-quality and qualified products.
Service Commitment
We adhere to the service principle of "quality first, customer foremost", and provide full-cycle one-stop pre-sales, in-sales and after-sales services for all global customers, eliminating customers' purchase and use worries.
Pre-Sales Professional Consulting Service: Provide 24-hour online professional technical consultation, recommend the most suitable equipment model according to customers' actual working scenarios, height requirements, load demands and site environment, and provide free solution design, parameter matching and budget quotation services.
In-Sales Tracking Service: Arrange special personnel to track the production progress in real time, feed back production, testing and packaging progress regularly, support factory inspection and video inspection, and provide complete customs clearance documents and product certification materials to ensure smooth delivery.
After-Sales Global Support Service: Provide 12-month free warranty service for the whole machine and 24-month warranty for the battery. During the warranty period, free replacement and maintenance of non-human damaged parts are provided. Equipped with overseas after-sales service teams and spare parts warehouses, fast response to customer fault feedback.
Free Technical Guidance & Training: Provide free remote installation, commissioning, operation and maintenance technical guidance. Provide professional operation training videos and manuals, helping workers master equipment operation and daily maintenance skills quickly.
