Product Introduction

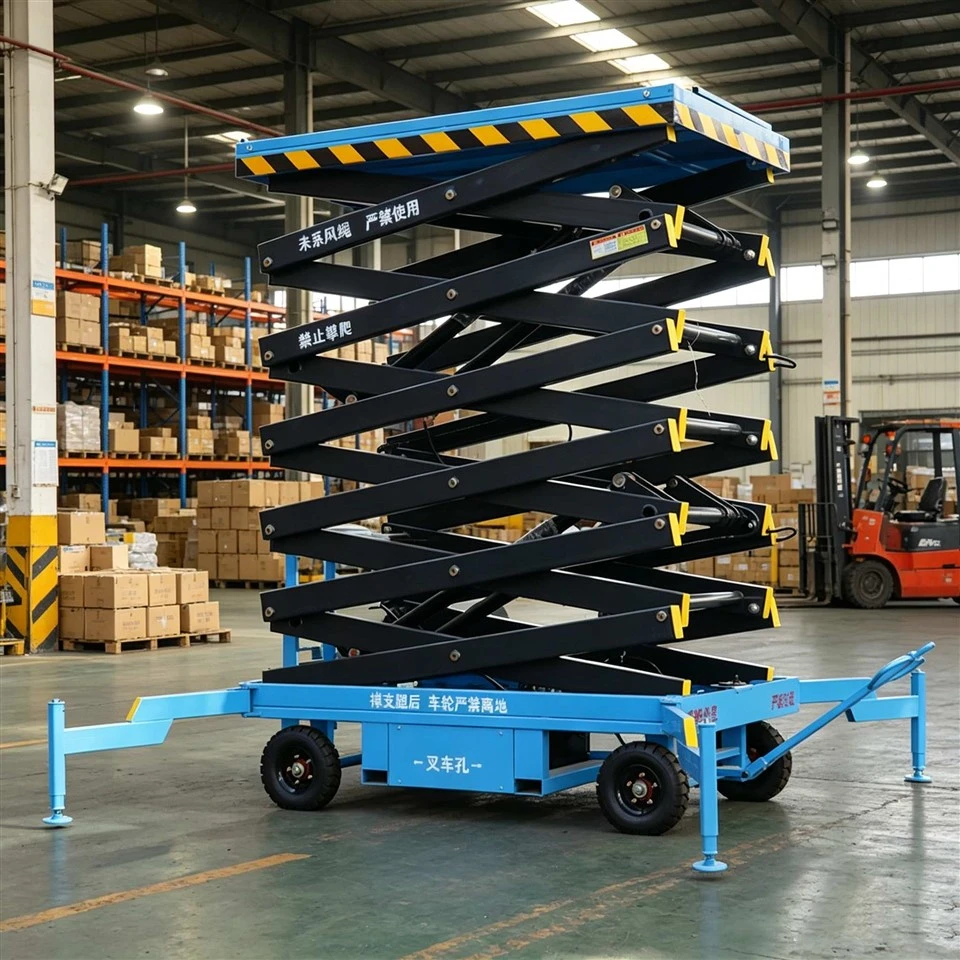

Our 6m towable scissor lift Max working height reaches 6 meters, stable load capacity for 1-2 workers plus tools. The whole scissor arm adopts thickened manganese steel welded structure, anti-rust spray coating to extend service life. Unlike fixed lifting platforms, this towable model can be quickly moved between different job sites without complicated installation.
Equipped with four hydraulic outriggers for full ground support, it keeps balance on uneven ground. The lifting control system includes ground control box and platform top control panel, dual operation mode for safer working. Widely favored by small construction teams, warehouse operators, factory maintenance crews and property management companies. As direct manufacturer, we cut intermediate costs to offer competitive factory direct price with reliable quality.
Product Parameters
| Item | Specification |
|---|---|
| Max Working Height | 6 m |
| Platform Height (Lowered) | 0.8 m |
| Rated Loading Capacity | 500 kg |
| Platform Size | 2000×1000 mm |
| Lifting Power Mode | Electric hydraulic lifting, battery powered |
| Traction Method | Towable with forklift / small vehicle / hand pull |
| Scissor Material | High strength manganese steel, thickened sheet |
| Outrigger | 4 hydraulic adjustable support legs |
| Control Mode | Dual control: ground box + platform top controller |
| Tire | Solid wear-resistant rubber tires |
| Total Weight | 980 kg |
| Working Temperature Range | -10℃ ~ +45℃ |
| Standard Certification | CE, ISO9001 |
Product Details
1 Heavy-Duty Scissor Arm Assembly
Multi-layer thick manganese steel scissor arms, full automatic 6m towable scissor lift welding process, high load bearing and anti-deformation performance. Yellow-black warning sticker on arm surface to remind operators of safety distance. Reinforced hinge joints with wear resistant bushings reduce long-term friction loss.
2 Stable Hydraulic Outriggers
Hydraulic towable scissor lift four independent hydraulic support legs, adjustable height to adapt uneven concrete, asphalt or grass ground. Each outrigger with thick steel base plate to avoid sinking during high-altitude operation, eliminate tipping risks completely.
3 Towable Traction Structure
Front tow drawbar and reserved forklift hole at machine bottom. You can tow this lift by forklift, pickup truck or manual pull handle. Solid rubber tires with anti-slip texture, no flat tire trouble during frequent site transfers.
4 Dual Safety Control System
Separate control box on the base for ground staff operation; another control panel installed on the platform guardrail. Emergency stop button set on both panels, cut power instantly once abnormal condition happens. Built-in overflow valve prevents platform overloading.
Product Usage Scenarios
6m towable scissor lift warehouse Inventory Management & Cargo Handling 6m height perfectly matches medium and high warehouse storage racks. Staff can sort goods, install racking and check stock safely without unstable ladders.
Building Exterior & Interior Maintenance Painting wall, installing lamps, repairing ceiling pipes, window cleaning for residential buildings, shopping malls, office buildings, hotels.
Factory Equipment Repair & Installation Workshop pipeline maintenance, overhead equipment overhaul, ventilation fan installation, production line high part inspection.
Exhibition & Event Layout Hanging billboards, installing stage lighting, arranging exhibition stands for exhibition halls, outdoor event venues, shopping mall promotions.
Packaging and Delivery
Packaging Method
Small order single unit: Wrapped by waterproof plastic film + wooden frame reinforcement to avoid collision damage during sea/land transit.
Bulk order full container load (FCL): Directly fixed inside container with steel binding belts, remove separate wooden frames to save container space and cut packaging cost.
Spare parts (control panel, hydraulic tubes, batteries): Independent carton packaging with foam buffer protection.
Certification
All our towable scissor lifts pass strict official testing and own complete international certification documents for global market sales:
CE Certificate (EU standard for aerial work equipment, valid for all European countries)
ISO9001 Quality Management System Certificate
Factory production inspection report for each batch of machines
Export customs inspection qualification document
Third-party load safety test report
Certification copies can be provided together with shipment documents to support smooth customs clearance in your local country. We support applying for other regional certifications as per customer market requirements.
Service Commitment
Pre-Sales Service
Professional sales engineer provide free parameter consultation, recommend suitable model based on your working height, load demand and site environment.
Support free battery powered towable scissor lift machine operation video, real factory workshop video to check product quality remotely.
Accept OEM & ODM customization: custom platform size, machine color, brand logo, battery capacity.
Provide formal quotation with clear unit price, production cycle, shipping cost breakdown.
Production Tracking Service
We send production photos and short videos at key stages: raw material cutting, welding assembly, finished product testing, packaging loading, keep clients updated on order progress.
After-Sales Warranty Service
Whole machine 12 months warranty period from delivery date.
Core components (hydraulic cylinder, motor, control box) 24 months free replacement warranty.
Supply spare parts at factory cost price after warranty expires, global fast delivery of spare parts.
Lifetime free technical guidance via video call, email or WhatsApp.
If machine has quality fault caused by production defect, we send replacement parts or arrange on-site technical guide according to customer situation.
Long-Term Cooperation Support
For bulk order regular customers, we offer annual volume discount, priority production arrangement and preferential logistics price.
