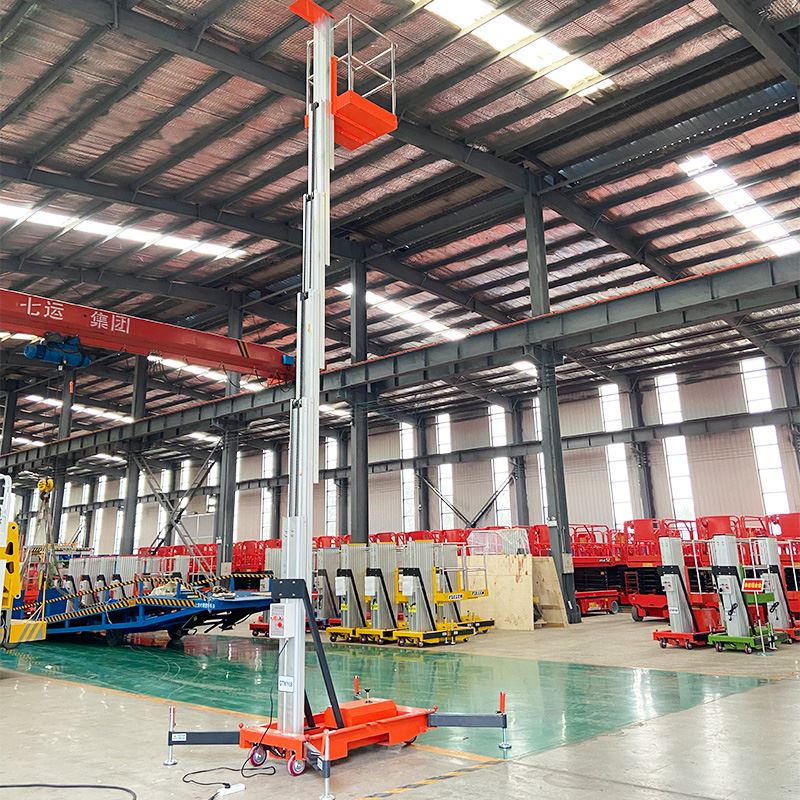

Products Description
The single mast aluminum vertical man lift range from 4m~10m.lt is designed for all indoor aerial work projects. The compact size allows it to enter a variety of confined spaces, easily pass through doors and adapt to elevators. It has extremely lightweight, non-marking tires, and stabilizers with rubber, which allows it to work on a variety of fragile grounds. The machine can be easily loaded, moved, and set up by one person, or towed by a trailer or a van, and only requires minimal maintenance. It is good value and even much less expensive than your local similar.
Product Parameters
|
Model |
HLPT04-1 |
HLPT06-1 |
HLPT08-1 |
HLPT10-1 |
|
Max. Working Height |
6m |
8m |
10m |
12m |
|
Max. Platform Height |
4m |
6m |
8m |
10m |
|
Loading Capacity |
120kg |
120kg |
120kg |
100kg |
|
Occupants |
1 |
1 |
1 |
1 |
|
Platform Dimension |
600*600mm |
600*600mm |
600*600mm |
600*600mm |
|
Overall Dimension |
1150*800*1650mm |
1150*800*1800mm |
1250*830*1980mm |
1330*830*2100mm |
|
Weight |
195kg |
230kg |
300kg |
360kg |
|
Lifting motor |
220V/1.1kw |
220V/1.1kw |
220V/1.1kw |
220V/1.1kw |
|
Lifting speed |
4-6m/min |
4-6m/min |
4-6m/min |
4-6m/min |
|
Minimum ground clearance |
0.05m |
0.05m |
0.05m |
0.05m |
|
Wheelbase |
1.1m |
1.1m |
1.29m |
102m |
|
Tyre |
6 inches |
6 inches |
6 inches |
6 inches |
Product Details

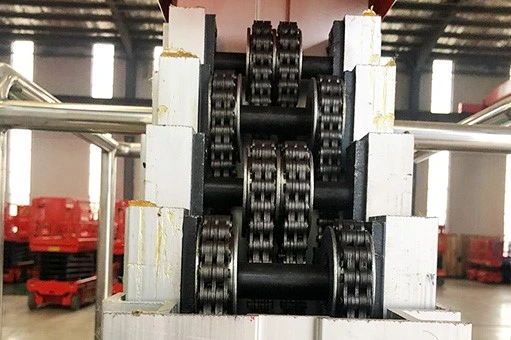

Chain Link System
Dual-chain transmission design for enhanced load capacity, smooth and stable lifting

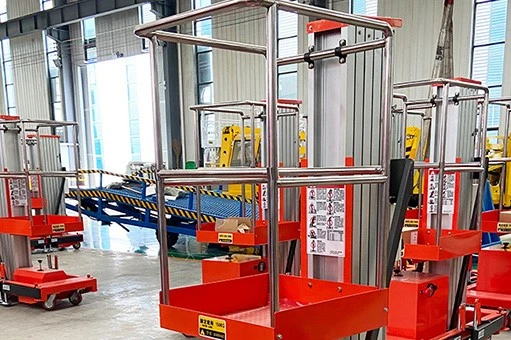

Safety Support Frame
Functions as a guardrail support bracket, providing sturdy and durable reinforcement
Master control panel with compreh

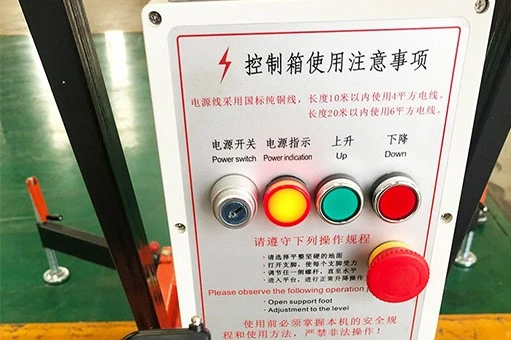

Master control panel with comprehensive functionality Intuitive design for clear operation and easy management

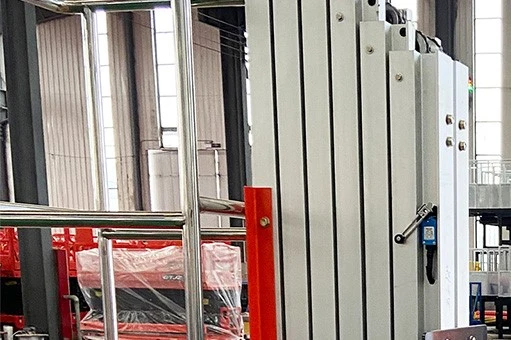

Premium Aluminum Alloy
High-strength profiles extruded with 3500-ton press for structural rigidity.Superior corrosion resistance for extended service life

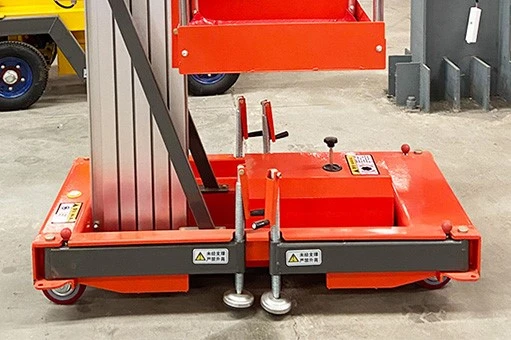

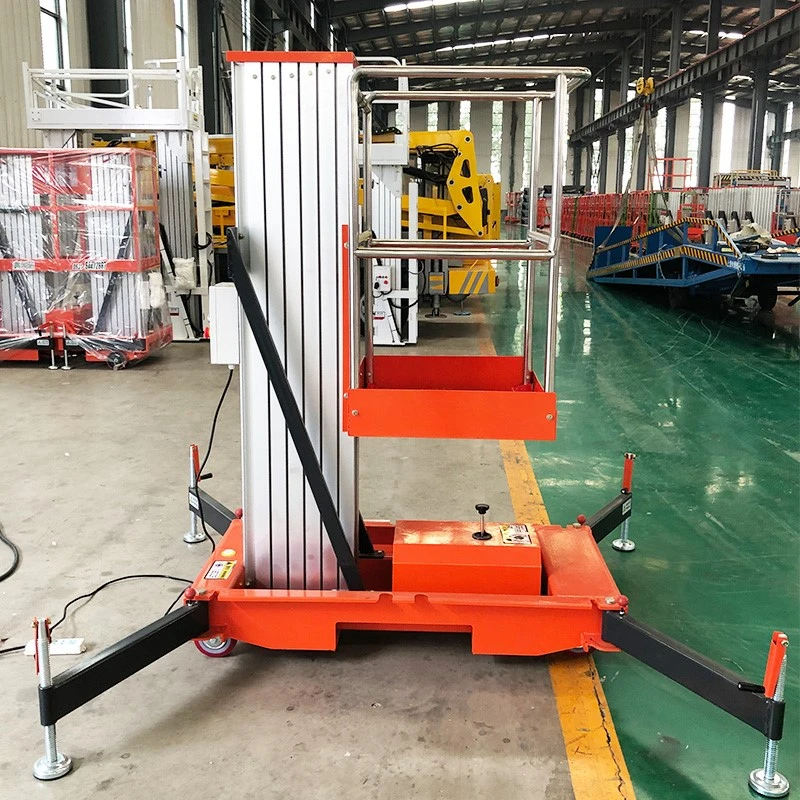

Foldable Support Legs
Space-saving design-- Legs fold away when not in use
Wear-Resistant Polyurethane Wheels
Highly maneuverable & floor-friendly, exceptional durability with reinforced wear resistance safe & reliable performance for long-term use
Product features
Load Capacity
A load capacity of 200kg ensures that the lift can handle a wide range of materials and equipment, making it suitable for various industrial applications.
Max Lifting Height
With a maximum lifting height of up to 14 meters, the lift provides access to high areas, enhancing its utility in construction, maintenance, and other elevated tasks.
Hydraulic Lift Drive
The hydraulic lift drive mechanism ensures smooth and stable lifting, providing reliable performance and ease of operation for users.
Aluminium Alloy Construction
Constructed from aluminium alloy, the lift is both lightweight and durable, making it easy to maneuver and resistant to corrosion, extending its operational life.
Product application
Company Profile
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment for the crane machine production. In addition, we have obtained certificates as CE,ISO,SGS. Selling well in all cities and provinces around of China, our products are also exported to clients in such countries and regions as Europe,South America,Middle East, Australia,Africa and Southeast Asia. We always supply the products with very high quality and received the very good feedback from all the customers. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Our Certificate
Packing & Delivery
FAQ
5 days to ship if in stock, 25 days if it need to re-produce.
Huali have rich experience to choose suitable equipment to you,as we have been in this line over 10years.Moreover,our products are highly competitive,both in quality and price.
Generally,the product warranty period is 12 months for key components since you receive it.
Please send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
We not only provide standard products,but also support customized products.
