Product Introduction
The portable single mast aluminum lift table is a compact and efficient aerial work equipment, specially designed for narrow spaces and high-altitude operations, integrating light weight, flexibility and safety. Made of high-strength aluminum alloy material, it is lightweight yet durable, with excellent corrosion resistance and load-bearing capacity, effectively reducing the overall weight while ensuring stable operation, making it easy to move, transport and store without occupying too much space. Its single-column structure features a small footprint, allowing flexible access to narrow areas such as corridors, small workshops and indoor spaces that are difficult for traditional lifts to reach.Equipped with a reliable hydraulic lifting system, it achieves smooth, stable and silent lifting, with accurate height adjustment (4m-12m optional) to meet various aerial work needs such as maintenance, installation and cleaning. The full-enclosed guardrail and anti-slip pedal provide comprehensive safety protection, preventing accidental falls and ensuring operator safety. The operation panel is simple to operate, enabling one person to complete all operations. It adopts an energy-saving motor, which is environmentally friendly and low-noise, suitable for both indoor and outdoor use. With simple maintenance, low later use cost and long service life.
Product Parameters
|
Model |
HLPT10-1 |
Oil cylinder |
Hebei Hengyu HSG50/35 1cylinder |
|
Maximum working height |
12m |
Tyre |
6 inches |
|
Maximum platform height |
10m |
Minimum ground clearance |
0.05m |
|
Safe working load |
100kg |
Lifting speed |
4-6m/min |
|
Overall weight |
360kg |
Platform dimensions |
600*600mm |
|
Overall dimensions of the machine (length x width x height) |
1330*830*2100 |
Rectangular tube |
100*50*3mm |
|
Leg deployment size W*L |
1750*1950mm |
pumping station |
Anshan Lisheng |
|
Maximum number of employees |
1 |
Support rod material |
Aluminum alloy thickness 6.4 |
|
Wheelbase |
1.2m |
electrical equipment |
Remote control distribution box (some accessories Delixi) |
|
Lifting motor |
220V/1.1kw |
Underframe |
Q235 steel plate rectangular pipe |

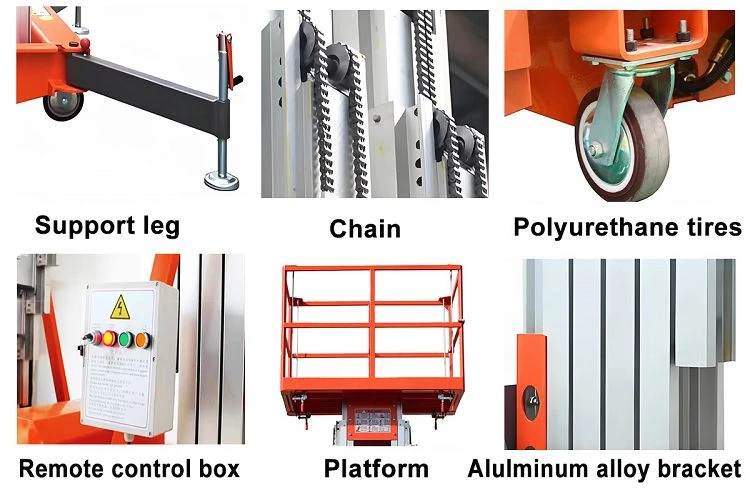

Product Details
Product Application
Company Profile
Deliver, Shipping And Serving
FAQ
Q: Do you have after-sales service?
A: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.Professional after-sales maintenance staff service
Q: May i print my LOGO on the lift?
A: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q: How to transfer the lift machine?
A: It is usually shipped by sea. Plywood package and LCL in a 20' container.
