Product Introduction
The electric double mast aluminum alloy lift features a lightweight and compact body with a small footprint, designed specifically for various indoor aerial work applications. It can easily pass through standard doorways and narrow aisles, fit into elevators, and access complex work areas, all without damaging delicate floor surfaces such as carpets, tiles, or flooring.
Product Parameters
|
Model |
HLPT06-2 |
Oil cylinder |
Hebei Hengyu HSG50/35 1cylinder |
|
Maximum working height |
8m |
Tyre |
6 inches |
|
Maximum platform height |
6m |
Minimum ground clearance |
0.06m |
|
Safe working load |
230kg |
Lifting speed |
4-6m/min |
|
Overall weight |
420kg |
Platform dimensions |
1170*620mm |
|
Overall dimensions of the machine(length x width x height) |
1350*900*1880 |
Rectangular tube |
100*50*3mm |
|
Leg deployment size W*L |
2000*2100mm |
pumping station |
Anshan Lisheng |
|
Maximum number of employees |
2 |
Support rod material |
Aluminum alloy thickness 6.4 |
|
Wheelbase |
1.16m |
electrical equipment |
Remote control distribution box(some accessories Delixi) |
|
Lifting motor |
220V/1.5kw |
Underframe |
Q235 steel plate rectangular pipe |

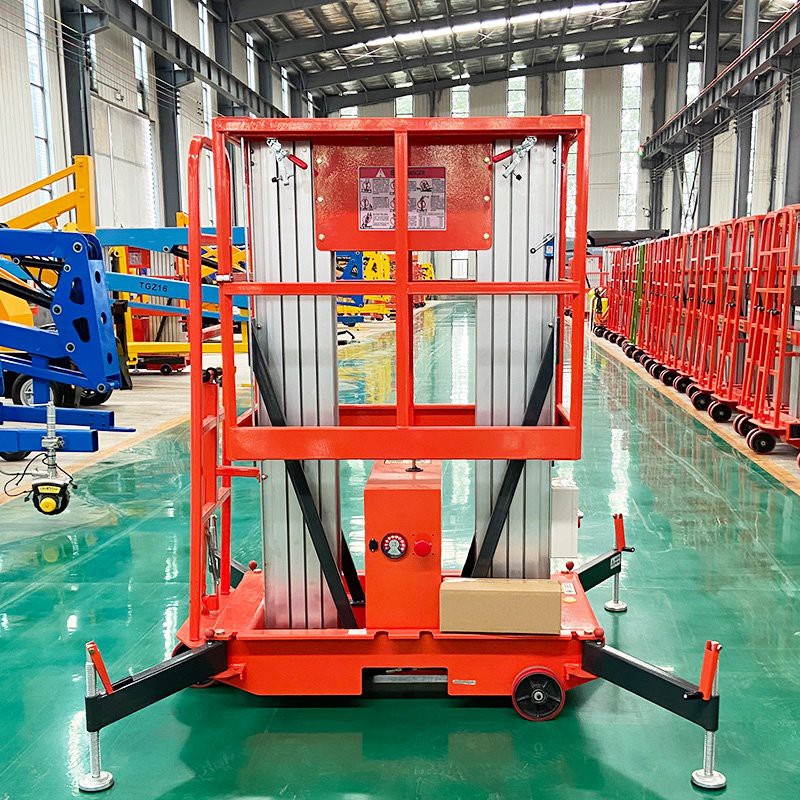

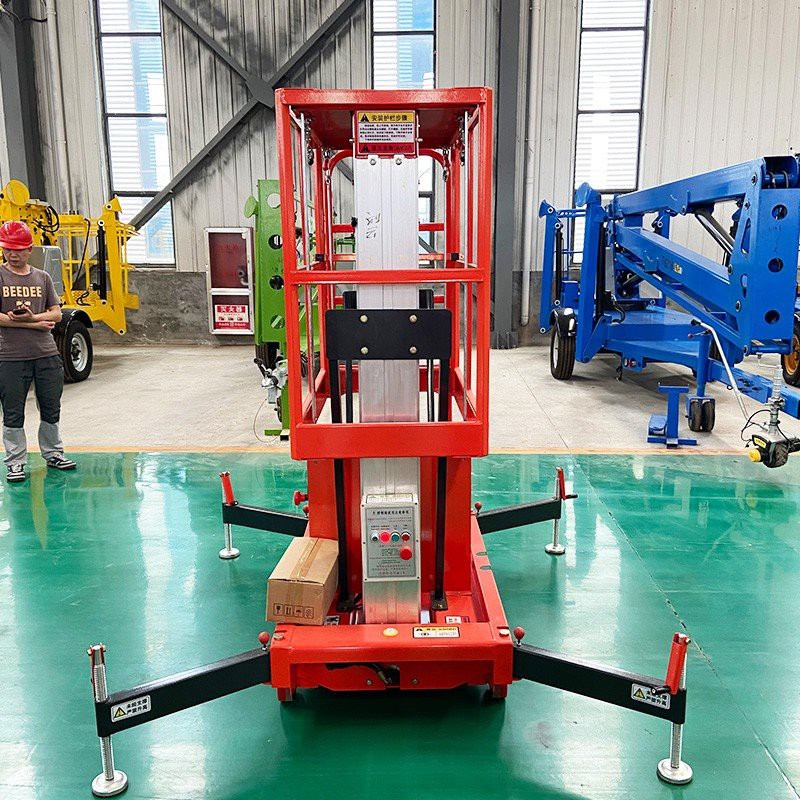

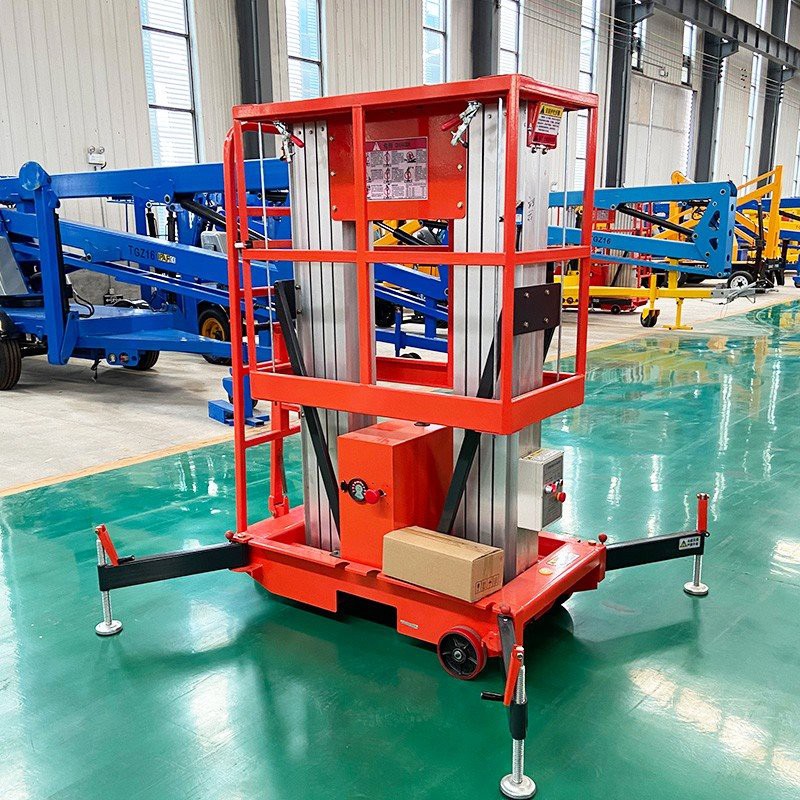

Product Details
Product features
1. The body is constructed from high-strength aluminum alloy, ensuring exceptional sturdiness and durability for long-term, trouble-free use.
2. Equipped with a manual operation mode, the unit is simple to use and easy to master; it functions normally even without a power connection.
3. Featuring a dual control system,combining a control panel with a remote control,it offers precise and highly efficient operation.
4. The base is fitted with wear-resistant polyurethane rollers, ensuring smooth mobility and stable movement across a wide variety of floor surfaces.
5. Color customization is available, allowing you to freely select a color scheme that perfectly suits your specific usage environment and requirements.
Product Application
Company Profile
Shandong Huali has always put innovation first. Before each product is delivered from the factory, we conduct strict quality inspections and dare not be careless, just to ensure that customers can use it with confidence.
Over the years, we have also accumulated many achievements in technology, successfully passing ISO, EU CE certification, and 3A integrity enterprise certification. Whether it is technical strength or corporate reputation, they can withstand inspection.
We mainly produce scissor type, arm type, traction type lifting platforms, as well as electric forklifts, loaders and other machinery. In addition, we can also customize non-standard equipment according to customers' specific needs. All products come with a two-year warranty and are supported by a professional after-sales team. Currently, our products are exported to global markets and have received recognition and praise from customers around the world.
Deliver, Shipping And Serving
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Export Standard Package.
Hot Tags: electric double mast aluminum alloy lift, China electric double mast aluminum alloy lift manufacturers, suppliers, factory
