Product Introduction
The whole double mast aluminum alloy lift for aerial work is refined with high-strength aluminum profiles. Due to the high profile strength, the deflection and swing of the lifting platform are extremely small. It adopts double-mast structure, large load capacity, large platform area, good stability, flexible operation and convenient implementation. The platforms themselves are equipped with safety steel ropes and safety protection devices. Equipped with an upper control switch or remote control system for easy access to the elevator.With its light appearance, it can exert a high lifting capacity in a very small space. The lift is widely used in factories, hotels, buildings, shopping malls, stations, airports, stadiums, etc. It can be used for high-altitude operations such as installation and maintenance of power lines, lighting appliances, overhead pipelines, and high-altitude cleaning.
Product Parameters
|
Model |
HLPT12-2 |
Oil cylinder |
Hebei Hengyu HSG50/35 1cylinder |
|
Maximum working height |
14m |
Tyre |
6 inches |
|
Maximum platform height |
12m |
Minimum ground clearance |
0.06m |
|
Safe working load |
220kg |
Lifting speed |
4-6m/min |
|
Overall weight |
660kg |
Platform dimensions |
1500*620mm |
|
Overall dimensions of the machine(length x width x height) |
1700*900*2000 |
Rectangular tube |
100*50*3mm |
|
Leg deployment size W*L |
2450*2300mm |
pumping station |
Anshan Lisheng |
|
Maximum number of employees |
2 |
Support rod material |
Aluminum alloy thickness 6.4 |
|
Wheelbase |
1.54m |
electrical equipment |
Remote control distribution box(some accessories Delixi) |
|
Lifting motor |
220V/1.5kw |
Underframe |
Q235 steel plate rectangular pipe |

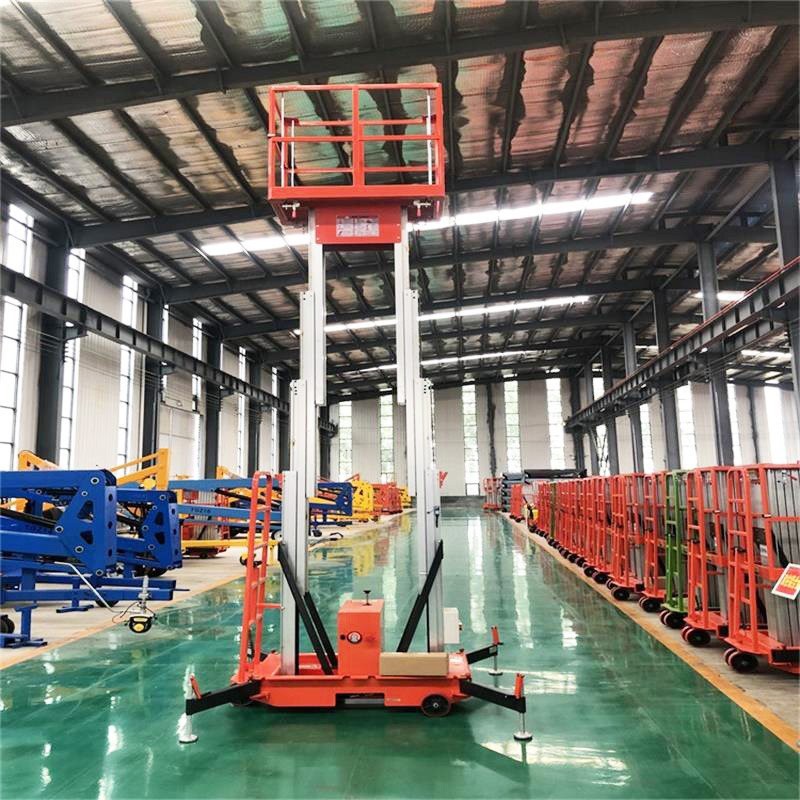

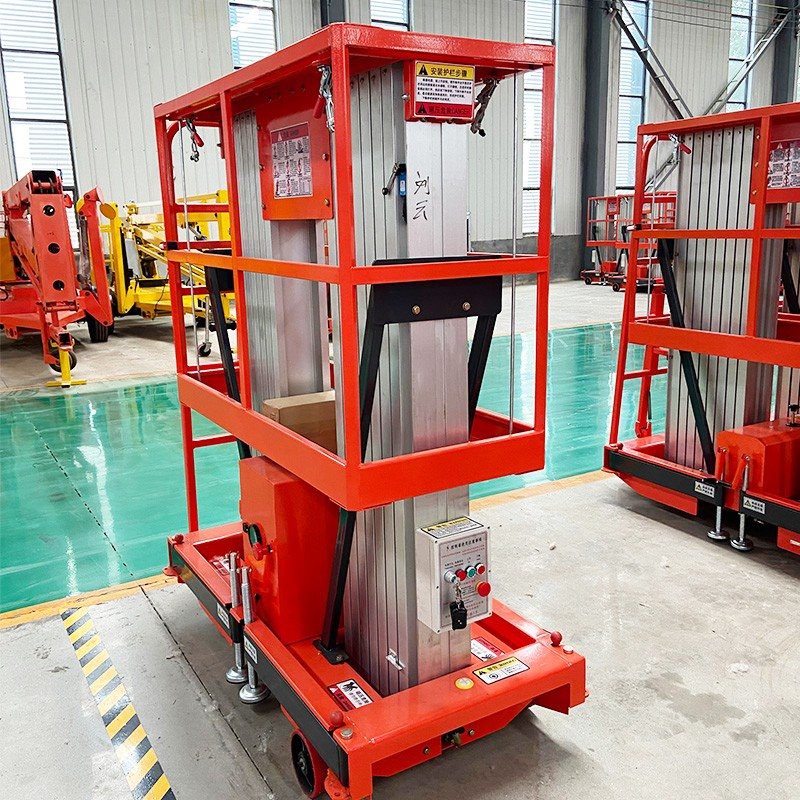

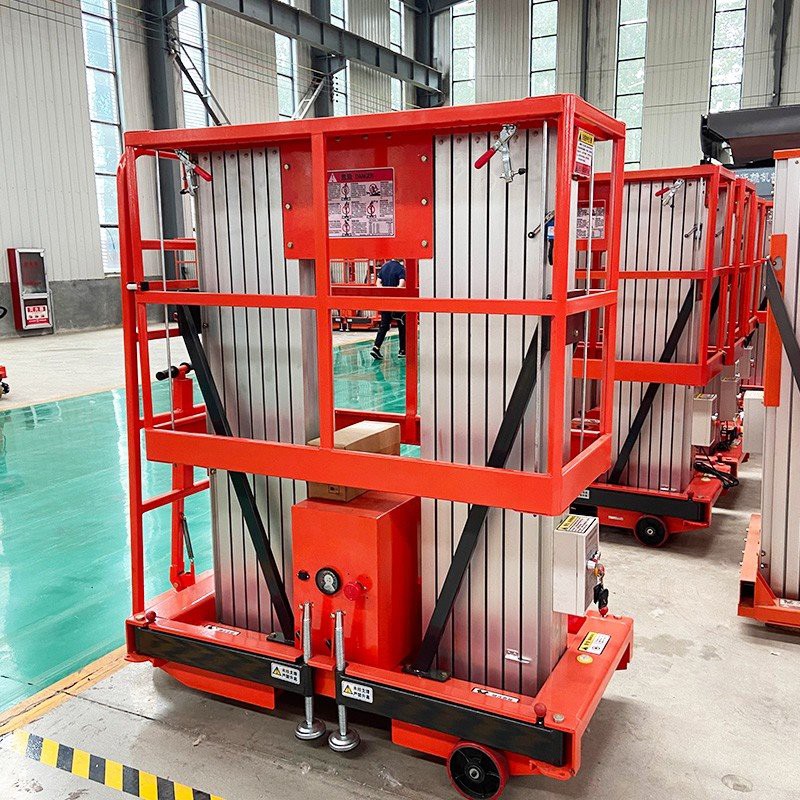

Product Details
Product features
1. Equipped with driving motor,which can move the whole machine much more easily.
2. AC power, DC power and AC & DC power.
3. Made by aluminum alloy material, light weight is suitable for one man operation.
4. Special mast and roller device between the mast. the stability is good.
5. Support legs structure of dual protection, make the working more security.
6. Equipped with emergency stop button, prevent accidents from happening when using.
7. Equipped with Emergency Decline Valve, Overflow Valve, One Way Valve, Adjustment Valve to guarantee the complete safety of the lift platform.
Product Application
Company Profile
Deliver, Shipping And Serving
FAQ
Q: How do you handle after-sales support and spare parts?
A: We provide detailed user manuals, installation guides, and video tutorials. Common spare parts are kept in stock for quick replacement. Our technical team is available for remote support via email and video calls.
Q: What is the delivery time for standard and customized orders?
A: Standard models typically ship within 5-7 days after order confirmation. Customized projects require 30-45 days depending on complexity. We always provide a detailed production schedule upon order placement.
Q: Is customization available?
A: Limited customization is available. The feasibility depends on specific product models and requirements. Please contact us for further details and confirmation.
