Products Description

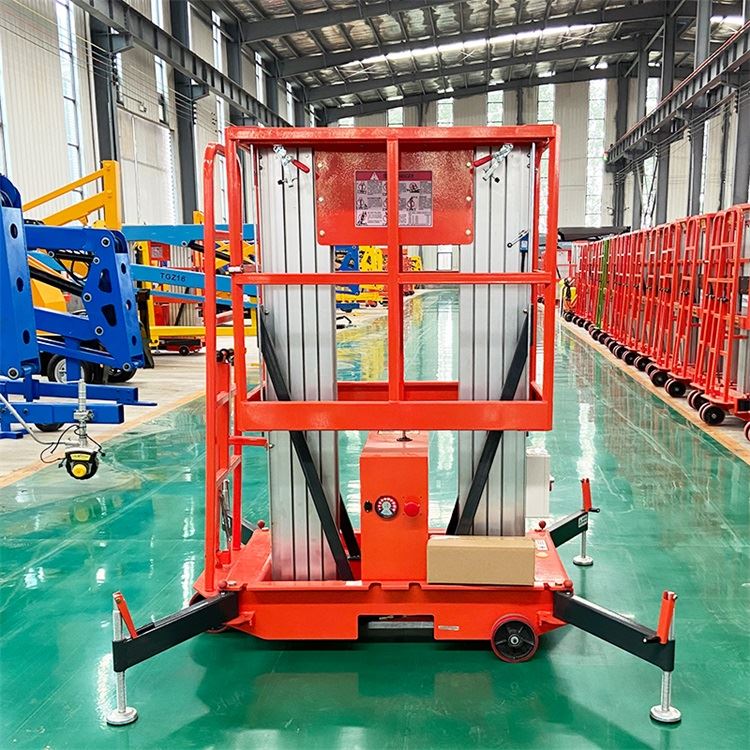

Double mast aluminum alloy lift platform is designed for medium-height aerial work at 6-14m. The dual mast guide structure improves platform stability with rated load up to 300kg, supporting 1-2 operators at the same time. Made of high-strength aluminum alloy, it is lightweight and durable, widely used for medium-height indoor/outdoor maintenance and installation in malls, hotels and exhibition halls.
Product Parameters
|
Model |
HLPT04-2 |
HLPT06-2 |
HLPT08-2 |
HLPT10-2 |
HLPT12-2 |
HLPT14-2 |
|
Max. Working Height |
6m |
8m |
10m |
12m |
14m |
16m |
|
Max. Platform Height |
4m |
6m |
8m |
10m |
12m |
14m |
|
Loading Capacity |
240kg |
230kg |
230kg |
230kg |
220kg |
200kg |
|
Occupants |
2 |
|||||
|
Platform Dimension |
1170*620mm |
1170*620mm |
1170*620mm |
1380*620mm |
1500*620mm |
1540*620mm |
|
Overall Dimension |
1350*900*1820mm |
1350*900*1880mm |
1350*900*2000mm |
1570*900*1880mm |
1700*900*2000mm |
1720*950*2350mm |
|
Overall Weight |
400kg |
420kg |
480kg |
560kg |
660kg |
740kg |
|
Lifting Motor |
220V/1.5kw |
|||||
|
Lifting Speed |
4-6m/min |
|||||
|
Minimum Ground Clearance |
0.06m |
|||||
|
Wheelbase |
1.16m |
|||||
|
Tyre |
6 inches |
|||||
Product Details
Fixed Pin
Used for fix the angle when outriggers are stowed or unfolded.
Limit Switch
Equip with limit switch as a key part of interlocking system, to ensure stable operation.
Control Box
Control panel has up, down, emergency stop button; when up or down, hold down corresponding button and will start.
Chain
Plate type chain, long using time, more reliable.
Tires
Equipment adopts non-marking tires, reliable quality, long using time.
Platform Fixed Clip
Used for fixing platform table, very stable,ensure safety.
Pressure Relief Valve
Manually operate the pressure relief valve for landing when the power is off.
Supporting Legs
Adjust supporting legs, easy to get balance.
Dual Mast Hydraulic System: Combines hydraulic power and chain-driven operation for smooth, efficient, and consistent lifting under heavy loads.
Dual Control Safety: Features two operation buttons at the platform and base, both operating on safe voltage for enhanced flexibility.
Lightweight Aluminum Construction: High-strength aluminum alloy pillars and rectangular steel pipes ensure durability while maintaining portability.
Explosion-Proof & Insulating: Designed with explosion-proof and insulating features for safe operation in diverse industrial environments.
Rapid Assembly: Intuitive setup process allows a single person to assemble the unit in minutes, drastically reducing downtime.
Customizable Specifications: Offers customization for load capacity, color, lifting height, and working height based on customer requirements.
Product application
Company Profile
in one-stop service
Huali is a leading and professional manufacturer specializing in the design, production, and export of aerial working platforms and logistics equipment. With a rich history spanning 10 years, the company has established itself as a trusted name in the global market, consistently delivering high-quality products and solutions that meet international standards.Our product portfolio includes a wide range of aerial working platforms and logistics equipment, designed to cater to various industrial and construction needs. From innovative lifting solutions to efficient material handling systems.We take pride in our ability to serve clients across diverse markets, ensuring that every customer receives tailored solutions and exceptional support.
Quick Delivery
Mature logistics system
to ensure timely and
hindeliyaba.
High-quality
We always import all
steel from CSG to
ensure product quality.
Reasonable Price
Factory production can
provide the most reasonable price.
24-Hour Service
24-Hour online service
to keep abreast of the
order progress.
Packing & Delivery
FAQ
What safety features does the lift platform offer?
Our lift is fitted with automatic braking, emergency stop buttons, anti-crush reverse systems and tilt protection, all purpose-built to ensure the highest level of safety for operators during use.
How simple is the scissor lift to operate?
The platform features a multifunctional control handle and user-friendly controls, enabling one person to operate it safely and efficiently without extra assistance.
What maintenance does the lift need?
Regular inspections of the hydraulic system, control handles and safety devices are advised. The lift is designed with easily accessible parts to simplify daily checks and ongoing maintenance.
Can the lift work on uneven ground?
Yes, the telescopic outriggers and automatic leveling function keep the platform stable on uneven surfaces, guaranteeing safe and reliable operation at all times.
