Product Introduction

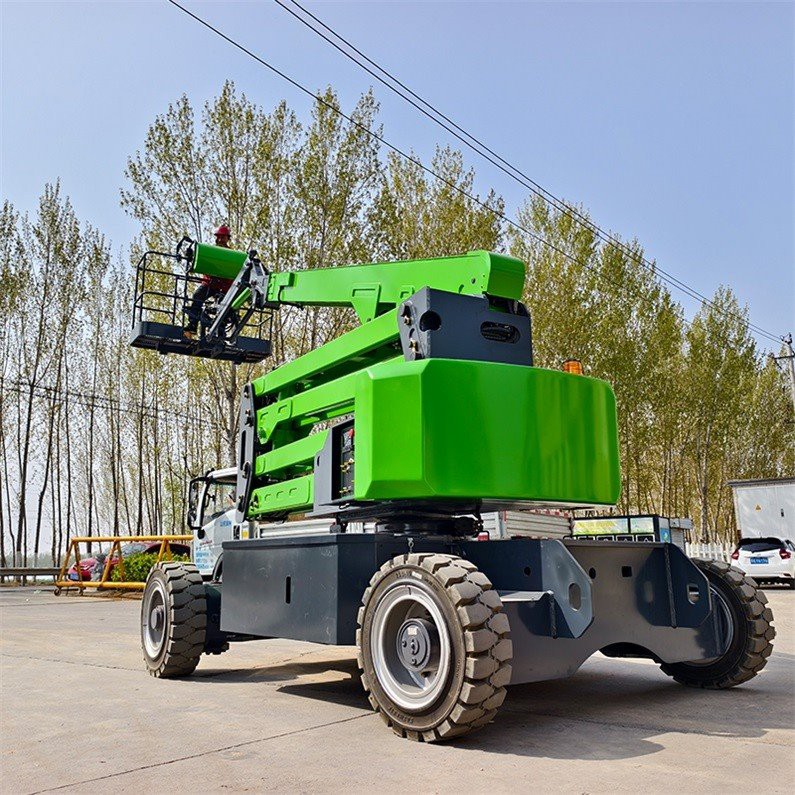

As a self-propelled articulated boom lift in the 12–22 meter class, it effectively meets daily operational requirements. The unit features a sophisticated, intelligent control system with an ergonomic layout, ensuring simple operation and hassle-free maintenance. Furthermore, the equipment incorporates comprehensive safety safeguards and offers a wide range of optional configurations, making it highly practical and versatile.
Product Parameters
|
Model No. |
MPA12E |
MPA14E |
MPA16E |
MPA18E |
MPA20E |
MPA22E |
|||
|
Dimension |
|||||||||
|
Max.Working Height |
m |
12.10 |
13.8 |
16.58 |
18 |
19.8 |
22 |
||
|
Max. Platform Height |
m |
10.10 |
11.8 |
14.58 |
16 |
17.8 |
20 |
||
|
Length(Stowed)*D |
m |
4 |
4 |
6.95 |
7.8 |
8.95 |
8.9 |
||
|
Width(Stowed)*E |
m |
1.5 |
1.5 |
2.3 |
2.3 |
2.36 |
2.45 |
||
|
Height(Stowed)*C |
m |
2.07 |
2.07 |
2.3 |
2.3 |
2.37 |
2.53 |
||
|
Wheelbase*F |
m |
1.9 |
1.9 |
2.36 |
2.36 |
2.5 |
2.5 |
||
|
Ground Clearance(Center)*G |
m |
0.045 |
0.45 |
0.08 |
0.08 |
0.18 |
0.33 |
||
|
Performance |
|||||||||
|
Max Load Capacity |
kg |
227 |
227 |
227/350 |
227/350 |
250 |
250 |
||
|
Occupants Maximum |
Count |
2 |
2 |
2 |
2 |
2 |
2 |
||
|
Platform Rotation |
° |
160° |
160° |
160° |
160° |
160° |
160° |
||
|
Turntable Rotation |
° |
355° |
355° |
355° |
355° |
355° |
355° |
||
|
Trave Speed(Stowed) |
km/h |
5 |
5 |
5 |
5 |
5 |
5 |
||
|
Gradeability |
% |
35 |
35 |
35 |
35 |
35 |
35 |
||
|
Maximum Slope in Degree |
° |
3-5° |
3-5° |
3-5° |
3-5° |
3-5° |
3-5° |
||
|
Turining Radius(Inside) |
m |
2.2 |
2.2 |
3.4 |
3.4 |
3.4 |
3.4 |
||
|
Turning Radius(Outside) |
m |
2.98 |
2.98 |
3.5 |
3.5 |
3.5 |
5.4 |
||
|
Drive & Steering |
2*2 |
2*2 |
2*2 |
2*2 |
2*2 |
2*2 |
|||
|
Power |
|||||||||
|
Drive Motor |
KW |
3.3 |
3.3 |
3.3 |
3.3 |
3.3 |
3.3 |
||
|
Hydraulic Tank Volume |
L |
19 |
19 |
19 |
19 |
19 |
19 |
||
|
Control voltage |
V |
12 |
12 |
12 |
12 |
12 |
12 |
||
|
Weight |
kg |
6050 |
6050 |
6740 |
7710 |
9270 |
9500 |
||
Product Details
Product features
1. Supports 360° free rotation for more convenient operation.
2. Equipped with a 48V battery pack for extended operating endurance.
3. Features fully proportional precision controls, offering flexible operation capable of handling various complex working conditions.
4. Offers a choice of dual power sources battery or diesel to suit diverse construction scenarios.
5. Employs proven steering and drive technology, featuring a small turning radius and enhanced maneuverability.
6. Supports switchable 2WD/4WD modes, delivering ample power and strong gradeability.
Product Application
