Product Introduction

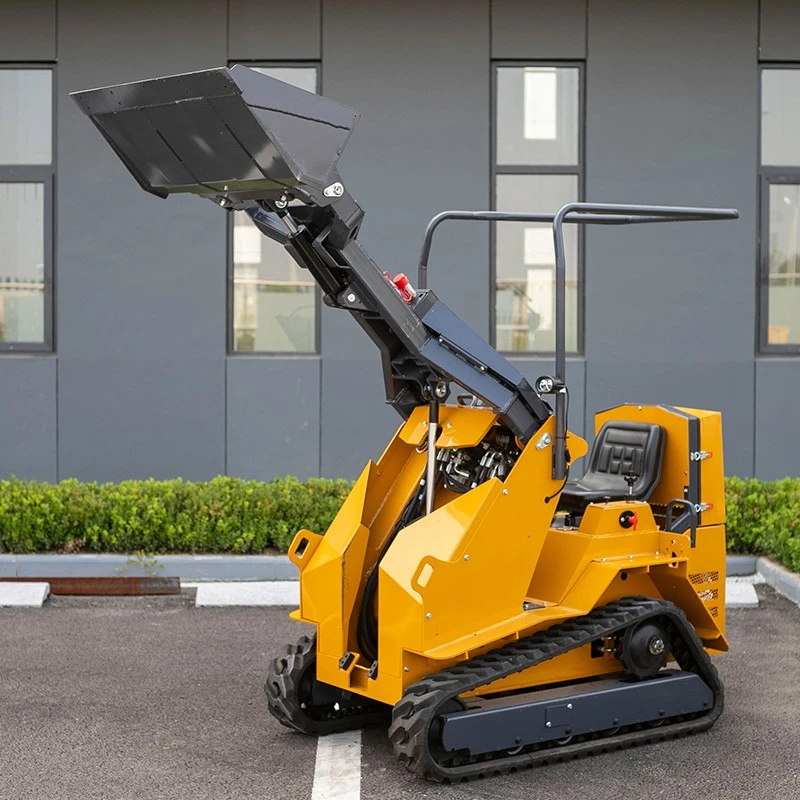

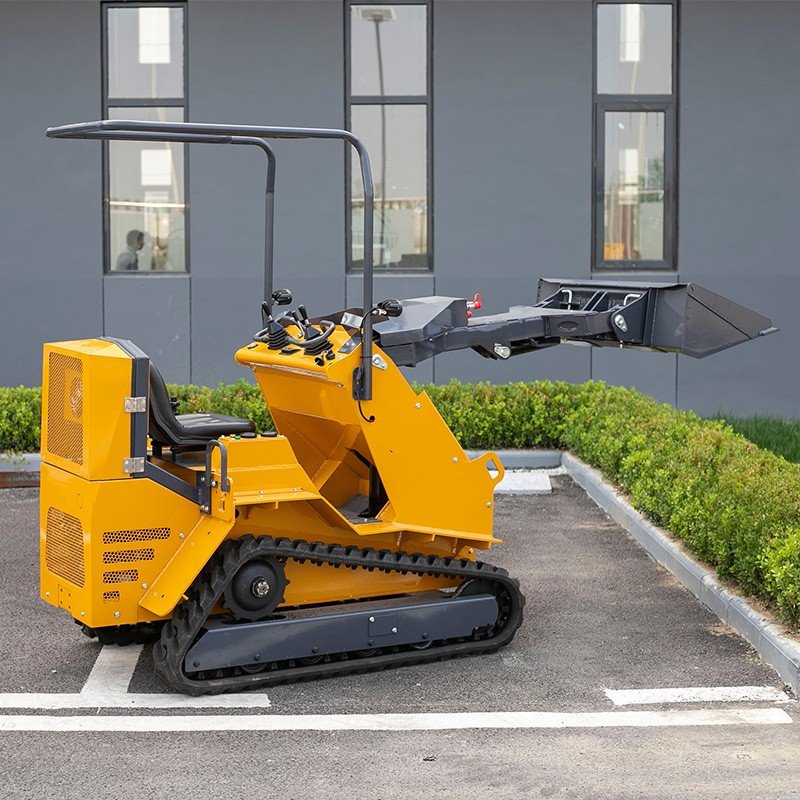

The telescopic skid steer loader is both practical and durable, specifically designed for heavy-duty operations. Featuring an advanced hydraulic system and a robust frame, it offers exceptional agility and lifting power. The cab is easy to operate, provides an expansive field of view, and ensures operator comfort, allowing for precise control even within confined spaces.
Product Parameters
|
Model:T390 |
|||
|
Engine model |
Electric/Science Popularization/ Runtong/ Zhongcheng/ Bailitong |
Vehicle height |
1250mm |
|
Rated power |
6kw,72v,125ah/7.5/8.6/8.5/9.9kw |
Total length with standard bucket |
2400mm |
|
Cylinder |
1 |
Car width |
960mm |
|
Intake method |
Naturally aspirated |
Total length without bucket |
1900mm |
|
Emission standard |
EPA/Euro5 |
Bucket width |
1050mm |
|
Rated load |
200Kg |
Tail length |
220mm |
|
Maximum load |
300Kg |
Maximum operating height |
2620mm |
|
Maximum digging force |
3.5KN |
To the height of the bucket pin |
2000mm |
|
Bucket capacity |
0.12m³ |
Maximum horizontal height of bucket |
1830mm |
|
Speed |
0-6km/h |
Dumping height |
1470mm |
|
Work three items |
9s |
Unloading distance |
600mm |
|
Work system pressure |
17bar |
wheelbase |
1300mm |
|
Fuel tank capacity |
5L |
Ground clearance |
230mm |
|
Operational quality |
1070KG |
The flipping angle of the bucket on the ground |
27° |
|
Tire model |
180*72*45 |
The bucket flips at the highest angle |
114° |

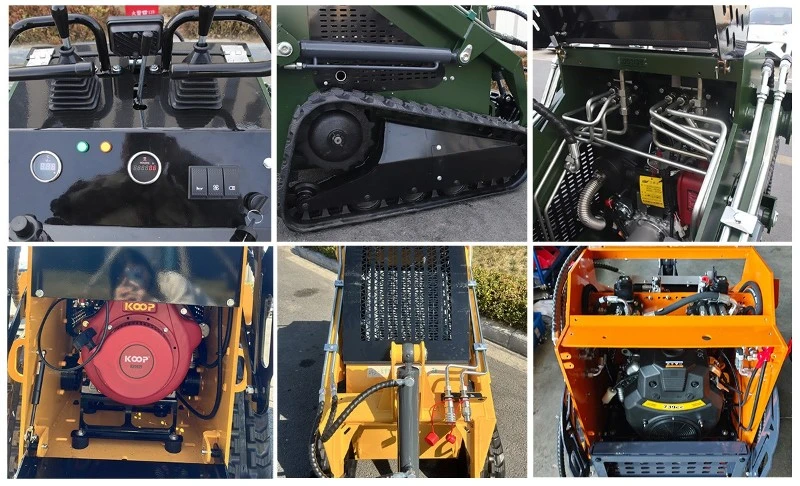

Product Details
Product features
1. Efficient and Flexible Operation:The telescopic skid steer loader is capable of zero-turn steering, offering highly agile handling that allows it to effortlessly tackle various specialized tasks.
2. Strong Terrain Adaptability:Regardless of how complex the ground surface may be, the machine handles it with ease, making it suitable for an extremely broad spectrum of applications.
3. Multi-Purpose Functionality:In addition to its standard operational capabilities, the machine allows for the rapid interchange of various attachments, ensuring both simplicity and high efficiency in its usage.
Product Application
Company Profile
Deliver, Shipping And Serving
Regarding packaging and logistics, we utilize robust materials to ensure the equipment is thoroughly protected. We offer the option of sturdy wooden crates or metal frame packaging to guarantee that the machinery remains free from damage during transit. Furthermore, we select the most suitable transportation methods to ensure safe loading and unloading, thereby ensuring that the entire logistics process is both secure and efficient.
