Products Description
The sit down skid steer loader is a versatile piece of construction machinery widely used in various fields such as construction sites, docks, and warehouses. It features exceptional maneuverability and high efficiency, allowing it to handle material loading and unloading tasks in confined spaces.
Equipped with advanced hydraulic systems and drive technology, the skid steer loader offers easy operation, improved work efficiency, and reduced labor intensity. Additionally, it boasts strong stability, high load-bearing capacity, and convenient maintenance.
Whether it's indoor or outdoor work environments, the skid steer loader excels in diverse applications, meeting the varied needs of customers.
Product Parameters
|
Model:T490 |
|||
|
Engine model |
Electric/Science Popularization/ Runtong/ Zhongcheng/ Bailitong |
Vehicle height |
1300mm |
|
Rated power |
8kw,72v,200ah/15/19.2/17kw |
Total length with standard bucket |
2700mm |
|
Cylinder |
3 |
Car width |
1100mm |
|
Intake method |
Naturally aspirated |
Total length without bucket |
2300mm |
|
Emission standard |
EPA/Euro 5 |
Bucket width |
1050mm |
|
Rated load |
250Kg |
Tail length |
500mm |
|
Maximum load |
350Kg |
Maximum operating height |
2530mm |
|
Maximum digging force |
4.5KN |
To the height of the bucket pin |
1933mm |
|
Bucket capacity |
0.12m³ |
Maximum horizontal height of bucket |
1740mm |
|
Speed |
0-6km/h |
Dumping height |
1400mm |
|
Work three items |
9s |
Unloading distance |
595mm |
|
Work system pressure |
17-21bar |
wheelbase |
1350mm |
|
Fuel tank capacity |
10L |
Ground clearance |
230mm |
|
Operational quality |
1200KG |
The flipping angle of the bucket on the ground |
27° |
|
Tire model |
180*72*45 |
The bucket flips at the highest angle |
114° |
Product Details
Stainless Steel Dashboard
With hour meterlt is used to record the engine working time.Left/ right/ attachment handle can control the tires and attachment.
Hydraulic oil coole
The cooler with a larger area in the same class is suitable for long-term,high-intensity hydraulic work
Thickened Bucket
Thickened material is used, which is corrosion-resistant and durable,improving working efficiency.
Rubber Track
The rubber track is anti-skid and wear-resistant, suitable for various terrains.
SEATS/PEDALS
Optional sitting/standing type,equipped with comfortable seat/thick pedals.
Auxiliary Oil Line Interface
Different work aids can be quickly replaced or attached according to work needs.
Product Features
1. The width of the sit down skid steer loader body is small, so it can freely enter and exit in some narrow spaces (such as the back door of the courtyard).
2. Vertical lifting design of the upper arm, capable of loading high pallet trucks.
3. The engine adopts EPA and Euro 5 dual certified diesel power, which can operate the boom and bucket during driving.
4. Large arm standard with suspension function (can follow ground undulations with a road sweeper)
5. The operating position is equipped with sponge pads.
6. Consider the convenience of maintenance during design.

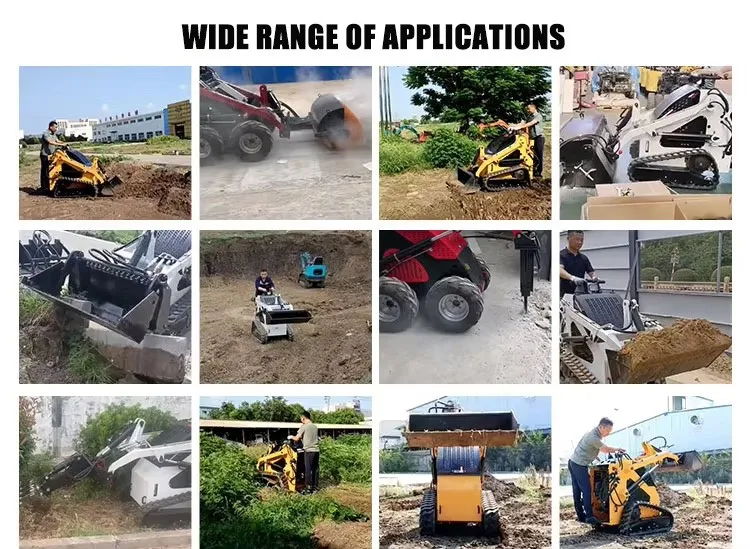

Product Application
Company Profile
Shandong Zhongke Huali Machinery Co., Ltd. . is a leading Chinese manufacturer of construction equipment with over 10 years of expertise. Certified with ISO 9001, CE, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Quality Assurance: Manufactured in a professional Chinese factory with strict quality control procedures. The use of high - quality components ensures durability and long - term reliability.
Cost - Effective: Offers a competitive price compared to similar products from other regions, providing excellent value for money.
Customization Options: We can customize certain aspects of the loader, such as color (as shown in the red design, other colors available), attachment compatibility, and additional features according to your specific needs.
After - sales Service: Provide comprehensive after - sales support, including spare parts supply, on - line technical assistance, and on - site service (conditions apply).
Deliver,shipping and serving
FAQ
One year warranty time.The global service network is still in construction, But you can contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours.
We have ISO, CE and our own quality control team. And we will do a lot of different tests to make sure it works fine.Always a pre-production sample before mass production; Always final Inspection before shipment.
Usually it will take 15 to 20 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Yes.We can avaliable OEM/ODM.
