Product Introduction
ISO CE Approved electric towable scissor lift for aerial working is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Product Parameters
|
Equipment model |
HLPT-1012 |
Rise |
10m |
|
Platform countertop |
2020*1130mm |
Size |
2020*1290*1560mm |
|
Load |
500KG |
Equipment self weight |
1470KG |
|
Tyre |
500-8 |
Motor power |
2.2KW |
|
Hydraulic cylinder |
4 HSG70/45 |
Lifting speed |
4-6m/min |
|
Scissor fork support rod |
120*60*4.5mm manganese steel Q500 |
Hydraulic oil pipe |
2-layer steel wire mesh high pressure explosion-proof oil pipe |
|
Hydraulic oil |
46 # Anti wear type |
Slider |
Imported nylon slider |
|
Electrical switch |
Delixi |
Oil seal |
VALQUA |
|
Pin shaft |
45 # Round steel blackening treatment |
Rust prevention treatment |
Acid pickling phosphating |
|
Surface Treatment |
Sandblasting and polishing |
Spray coatingtreatment |
Electrophoretic baking paint |

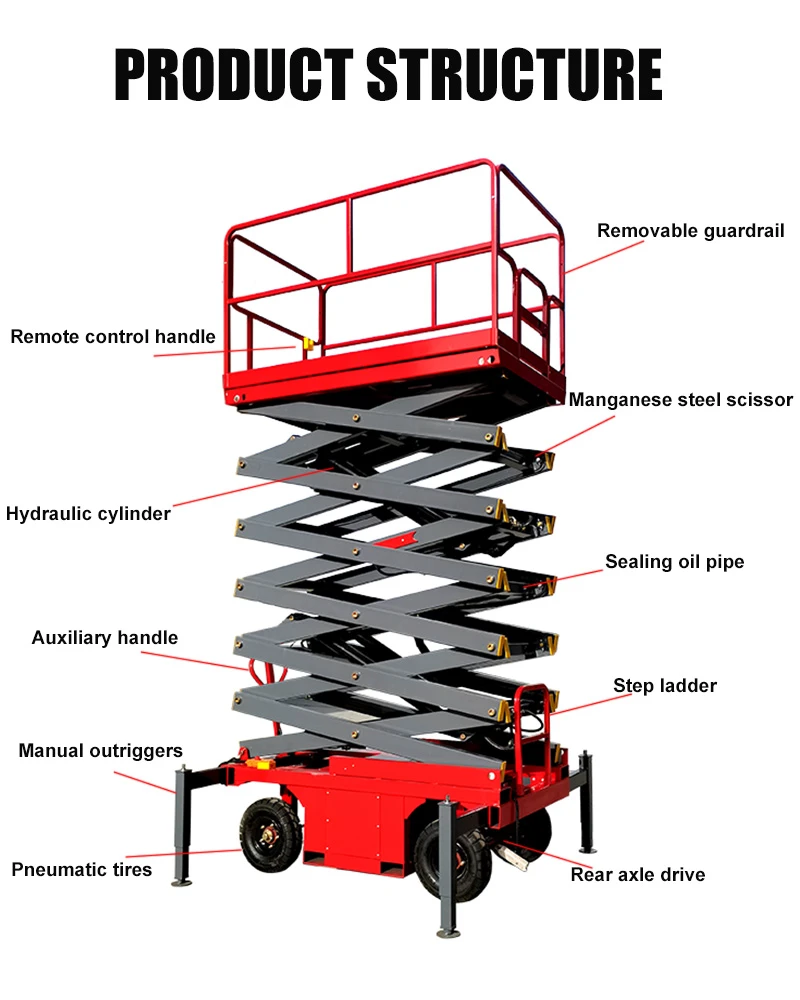

Product Details
Product features
1.Simple structure, easy to maintain.
2.Flexible producing technique, suitable for customization.
3.Load capacity 500~2000kg.
4.Electric towable scissor lift max platform height from 4m to 18m.
5.Moving by man manually or tractor towed.
6.Lifting by AC(without battery) or DC(with battery) optional.
7.Explosion-proof valves (extra charged)
8.Equipped with anti-skid plate
9.Overload protective system. (extra charged)
10.Single control solenoid valves : prevent dropping if power failure.
11.Emergency decline valve
12.Four supporting legs.

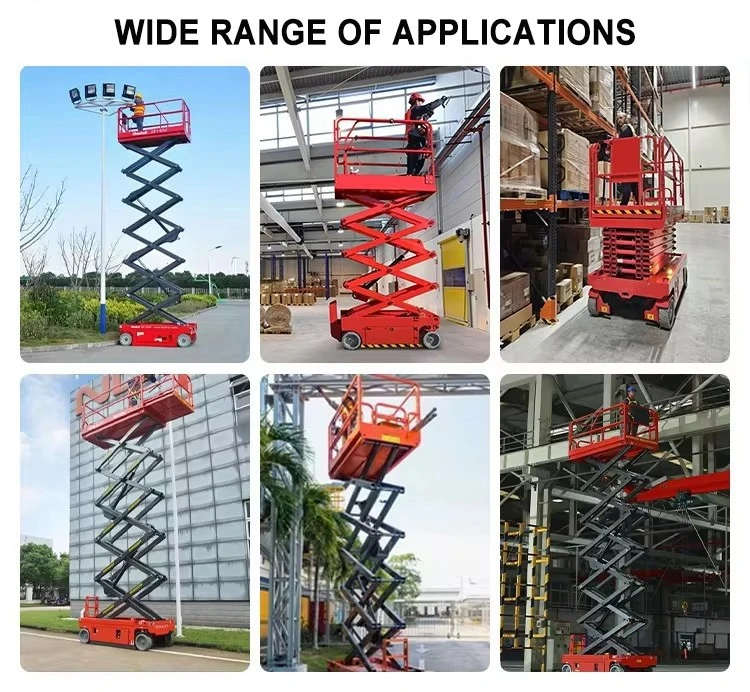

Product Application
Company Profile
Shandong Huali heavy Industry Machinery Co., Ltd is specialized in design, production and sales of hydraulic lifting platform.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world .The main products are the pure electric, semi-electric scissor lift, aluminium working platform, electric towable scissor lift, rail type hydraulic lifting platform, automatic aerial work platform. We can also design and manufacture non-standard hydraulic lifting platform according to the needs of users.
Deliver, Shipping And Serving
FAQ
Q: What are the maximum working height and load capacity?
A: The standard model has a working height of 4 to 20 meters (customizable) and a rated load capacity of 200 to 500 kilograms.
Q: What safety protection devices are there?
A: It is standard-equipped with overload protection, tilt alarm, emergency descent, anti-pinch device, etc.
Q: Do you offer customized services?
A: Yes. Our professional technical team and engineers can customize solutions for you free of charge.
Q: Do you have professional technicians to assist with installation?
A: Yes. We offer both online and on-site installation. We have a professional installation team that has traveled to multiple countries to assist with installations. If you require installation, please let us know in advance and we will send an engineer to install the product.
