Products Description

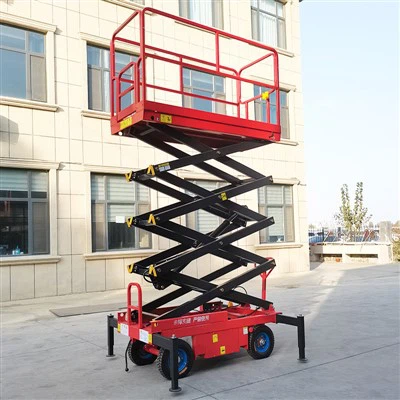

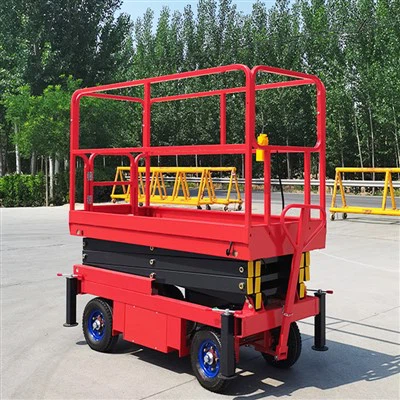

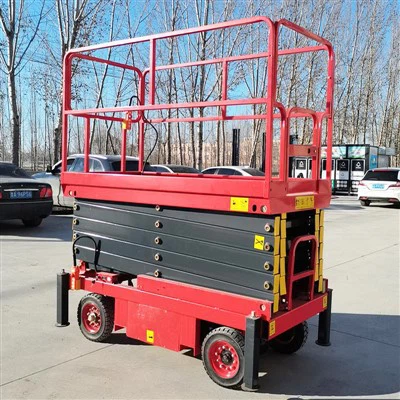

Mobile push around scissor lift has a lifting height ranging from 4 m to 18 m, and loading weight from 300 kg to 500 kg, with lifting mode of manual operation, electric and battery, etc.Explosion-proof electric can be chosen for special places, extended platform can be installed according to the users' needs. This product has advantages including easy to move, large surface and strong carrying capacity, allowing simultaneous operation of several persons, and safety & reliability, so it is the optimal product for aerial lifting operation.
Product Parameters
|
Model |
Table Size (mm) |
Load Capacity (kg) |
Platform Height (m) |
Working Height (m) |
Overall Dimension (mm) |
Net Weigh (kg) |
Battery (v) |
Motor (kw) |
|
HLPT-0406 |
2020*830 |
500 |
4 |
6 |
2020*1000*1270 |
720 |
12v/58ah |
1.5kw |
|
HLPT-0608 |
2020*830 |
500 |
6 |
8 |
2020*1000*1270 |
770 |
12v/58ah |
1.5kw |
|
HLPT-0810 |
2020*830 |
500 |
8 |
10 |
2020*1000*1370 |
920 |
12v/58ah |
1.5kw |
|
HLPT-0911 |
2020*830 |
500 |
9 |
11 |
2020*1000*1535 |
1150 |
12v/58ah |
2kw |
|
HLPT-1012 |
2020*1130 |
500 |
10 |
12 |
2020*1290*1560 |
1470 |
12v/58ah |
2.2kw |
|
HLPT-1113 |
2020*1130 |
300 |
11 |
13 |
2020*1290*1660 |
1150 |
12v/85ah |
2.2kw |
|
HLPT-1214 |
2500*1210 |
500 |
12 |
14 |
2500*1360*1800 |
2180 |
12v/85ah |
3kw |
|
HLPT-1416 |
2865*1420 |
500 |
14 |
16 |
2865*1620*1915 |
2720 |
12v/85ah |
3kw |
|
HLPT-1618 |
2865*1420 |
300 |
16 |
18 |
2865*1620*2075 |
2980 |
12v/85ah |
3kw |
|
HLPT-1820 |
3080*1620 |
300 |
18 |
20 |
3080*1800*2150 |
3980 |
12v/85ah |
3kw |
Product Details
Product features:
Heavy-Duty Steel Construction: Robust scissor mechanism and steel frame ensure exceptional stability and long service life.
Comprehensive Safety Features: Includes automatic braking, emergency stop, anti-crush reverse, tilt protection, and safety railings.
Stable on Uneven Ground: Telescopic outriggers and automatic leveling system ensure safety on irregular surfaces.
Easy Mobility Design: Wheeled base with manual traction allows effortless movement between indoor and outdoor work areas.
User-Friendly Operation: Intuitive control handle enables single-operator efficiency without extra assistance.
Reliable Hydraulic System: Smooth lifting with overload protection for precise height adjustment and safe operations.
Customization Options: Flexible customization available to meet specific client requirements.
Product Application
Company Profile
Shandong Zhongke Huali Machinery Co., Ltd. is a manufacturing and sales enterprise specializing in the production and distribution of aerial work platform. The company boasts over ten years of experience in hydraulic production,equipped with a comprehensive set of flow production facilities, scientific and advanced production technologies, and impeccable and rigorous equipment. Additionally, the company possesses extensive expertise in logistics machinery design, complemented by a wealth of experience among its process and technical personnel.
01
10+ Years of Industry Expertise
We help you source the right products efficiently.
02
Strict Quality Control
All products inspected before shipment.
03
Global Customer Base
Trusted by buyers in 60+ countries.
04
After-Sales & Technical Support
-We solve problems, not just sellproducts
Packaging & Shipping
FAQ
We can accept sample order for testing quality. But sample and express charge should be on customer's account.
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time.
Custom design is surely available. We have very rich experience in customizing shelves.
