Product Introduction

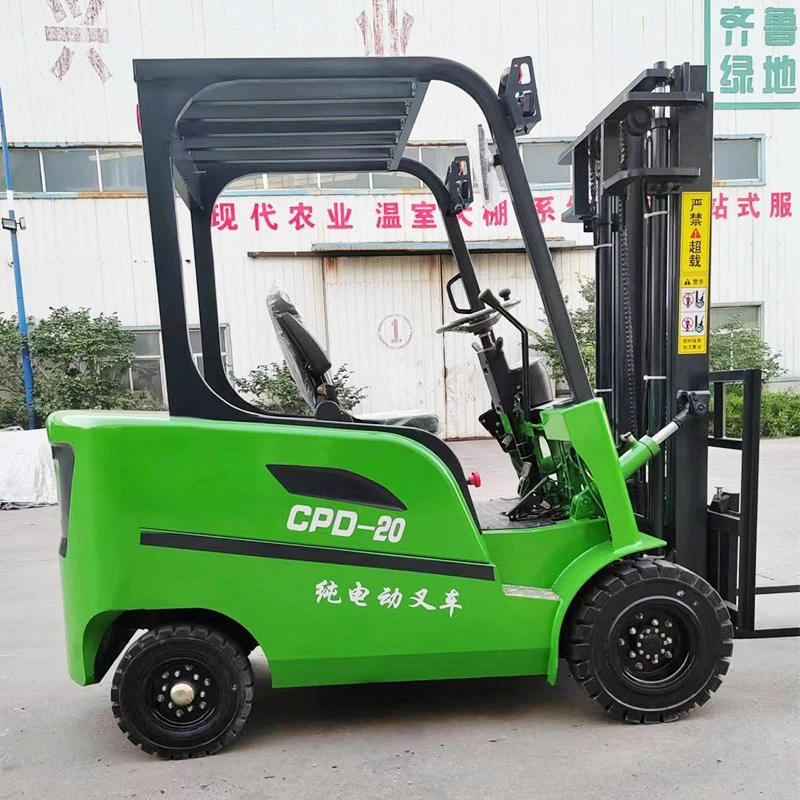

This battery powered electric forklift is a robust and dependable piece of industrial equipment designed for efficient material handling in warehouses, construction sites, and logistics operations. Built for durability and performance, it offers a practical solution for lifting and transporting heavy loads with precision and safety.
Product Parameters
|
Equipment Model |
CPD-25 |
Body Material |
Q500 thickened integrated stamping |
|
Dimensions |
2500*1200*2150mm |
Steering Mode |
Hydraulic Power Steering |
|
Lift Height |
3000mm |
Walking Motor |
Puyixi 5Kw Permanent magnet synchronous brushless AC motor |
|
Operating Weight |
3600KG |
Lifting Motor |
Puyixi 5Kw Permanent magnet synchronous brushless AC motor |
|
Maximum Lifting Weight |
2500 KG |
Controller |
Xinlianda high-power controller |
|
Turning Radius |
180 ° can be turned in place |
Transaxle |
Suspension cast steel integrated heavy-duty 256 type |
|
Braking Method |
Electronic Brake |
Gantry Frame Material |
National standard special steel gantry thickened by 148mm Material: 20MnSiV |
|
Steering Axle |
Special rear axle for heavy-duty forklifts |
Lifting Cylinder |
Lift cylinder 50-1500 Tilt cylinder 63-150 |
|
Working Time |
8 hours |
Tire |
Front 650-10 Back 500-8 |
|
Charging Time |
6-8 hours |
Fork Length |
1220mm thickened integrated forged fork |
|
Climbing Angle |
25° |
Battery |
Tianneng 10* 12V |
Product Details
Product features
Environmental Friendly
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Dual combined switch lever as a car to enable easy operating.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the battery powered electric forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plu.
Product Application
Company Profile
About Quality
Our forklifts undergo at least four inspections before every delivery, covering engine inspection, load - bearing inspection, emission inspection, and safety inspection. Each type comes with relevant certificates that meet regional regulations, guaranteeing customers get top - notch products.
About After-sales
When you purchase any model of forklift, we will provide you with a free one-year warranty. At the same time, we have a professional service team that is online 24 hours a day to provide one-on-one guidance to help you understand how to use the machine. If you have any questions about the machine, please contact us in time.
About Customization
As a machinery manufacturer, We has a professional technical design department that can customize according to customer needs, such as color, configuration and assistive devices etc.
Deliver, Shipping And Serving
Support sea freight FCL/LCL and air freight dedicated lines, customize the optimal solution based on order volume, and maximize the reduction of unit transportation costs.
