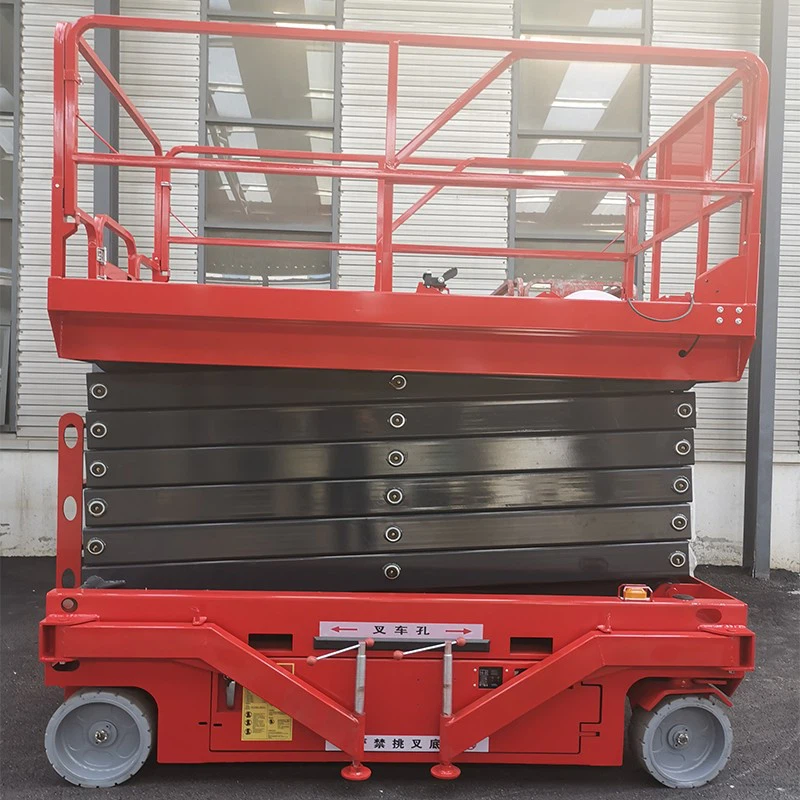

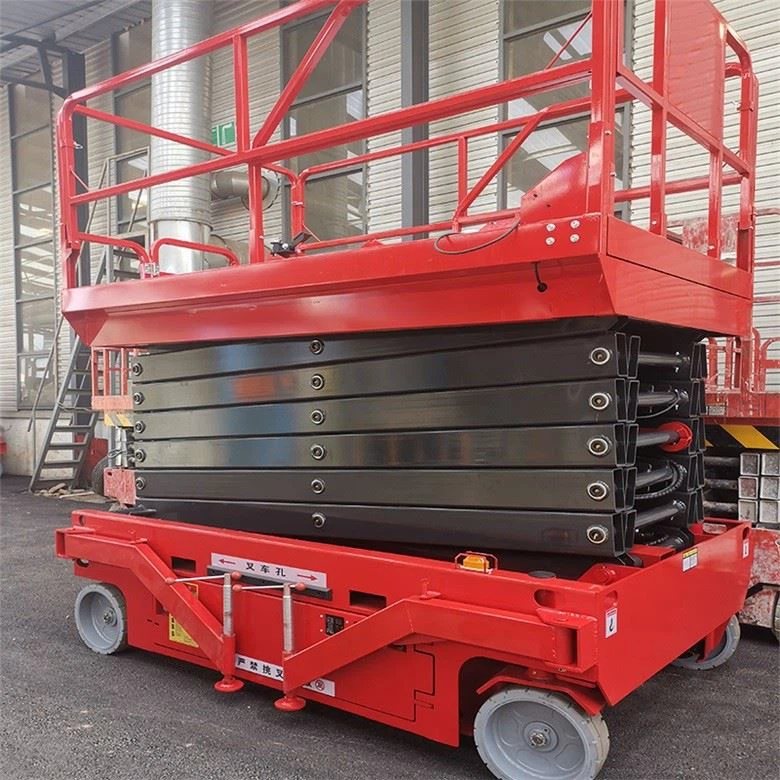

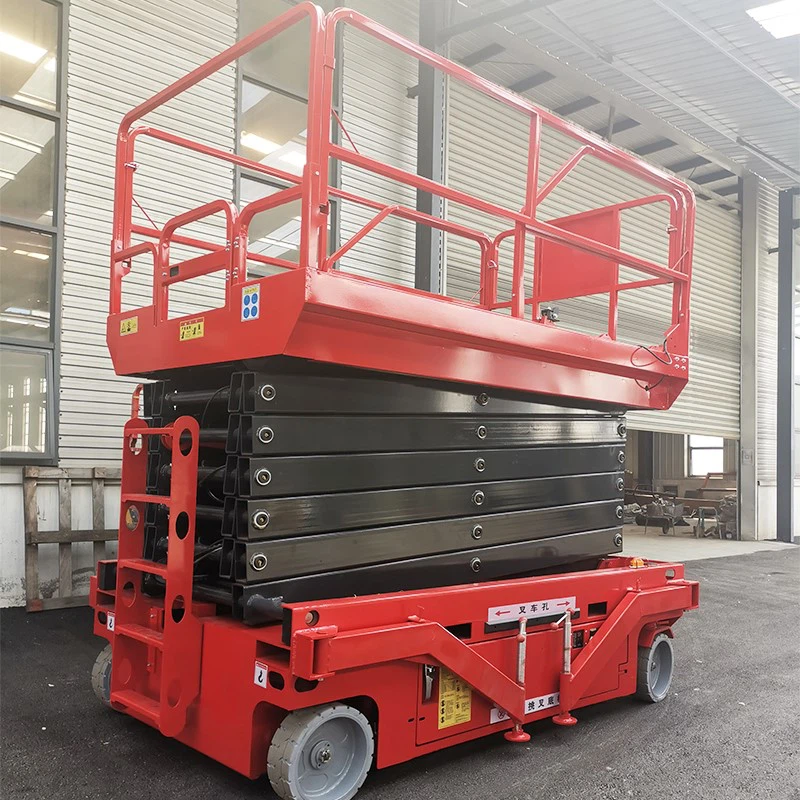

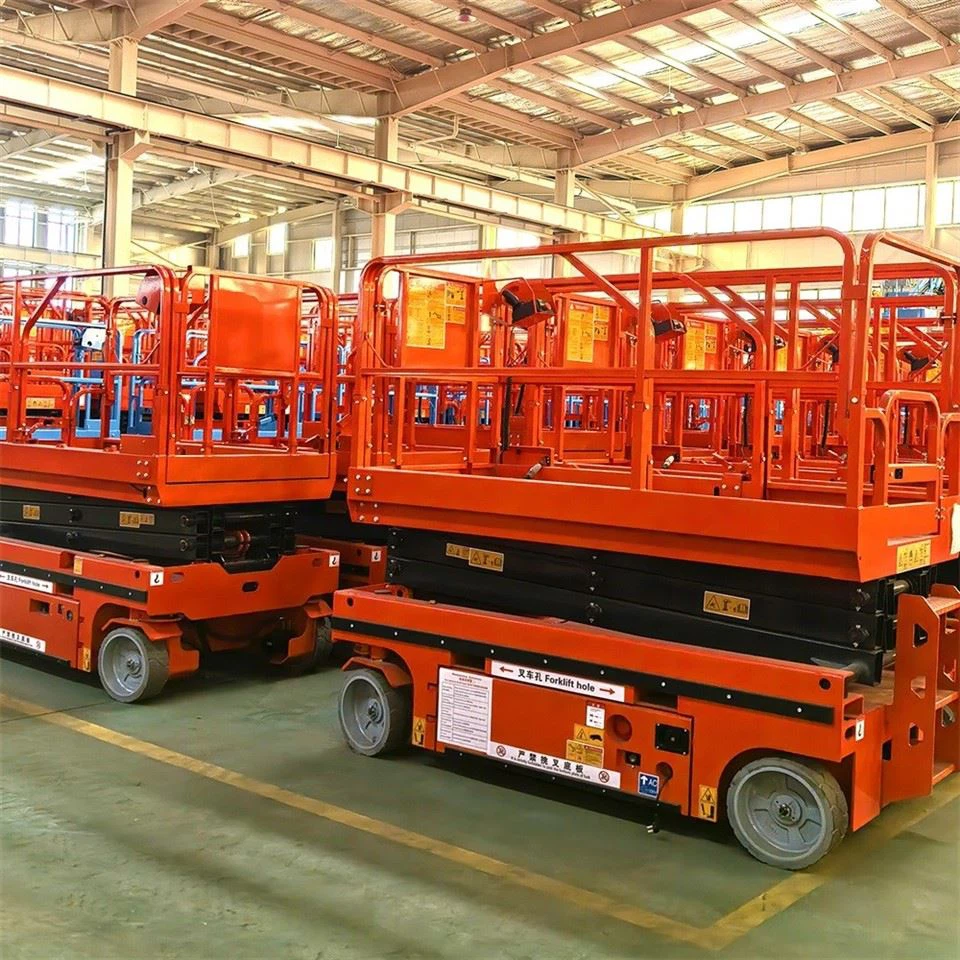

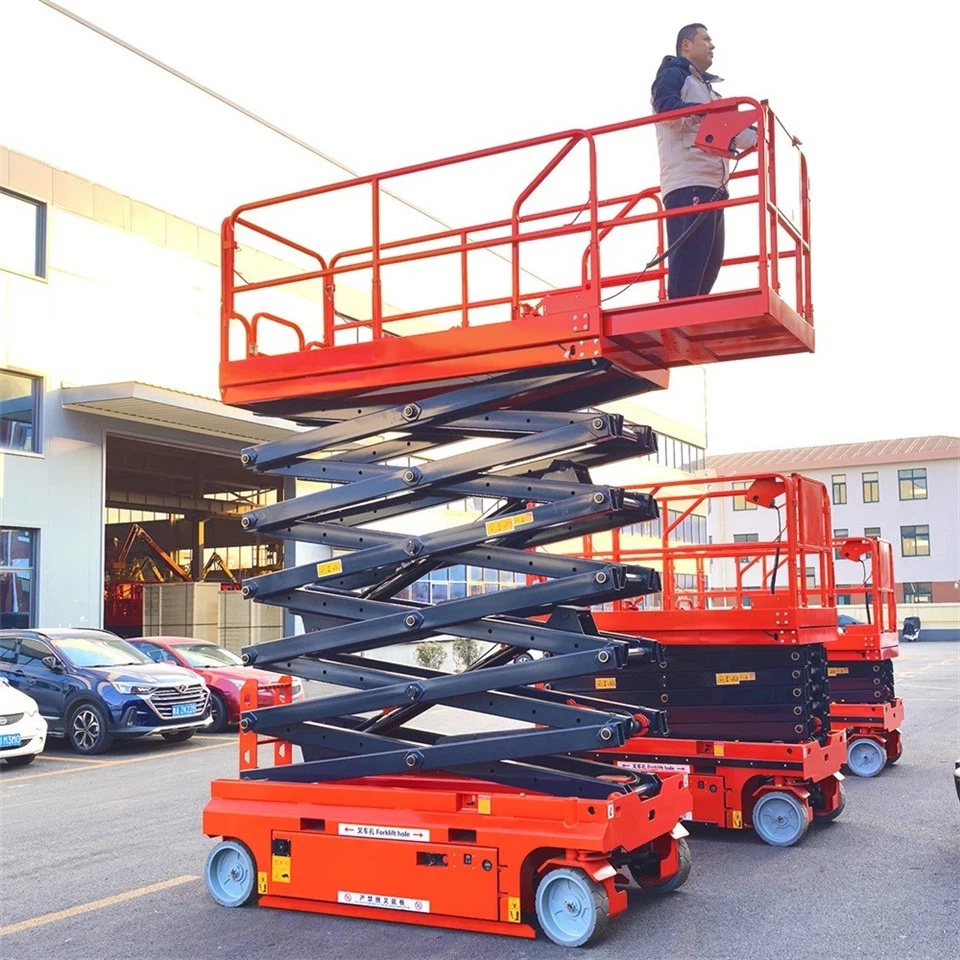

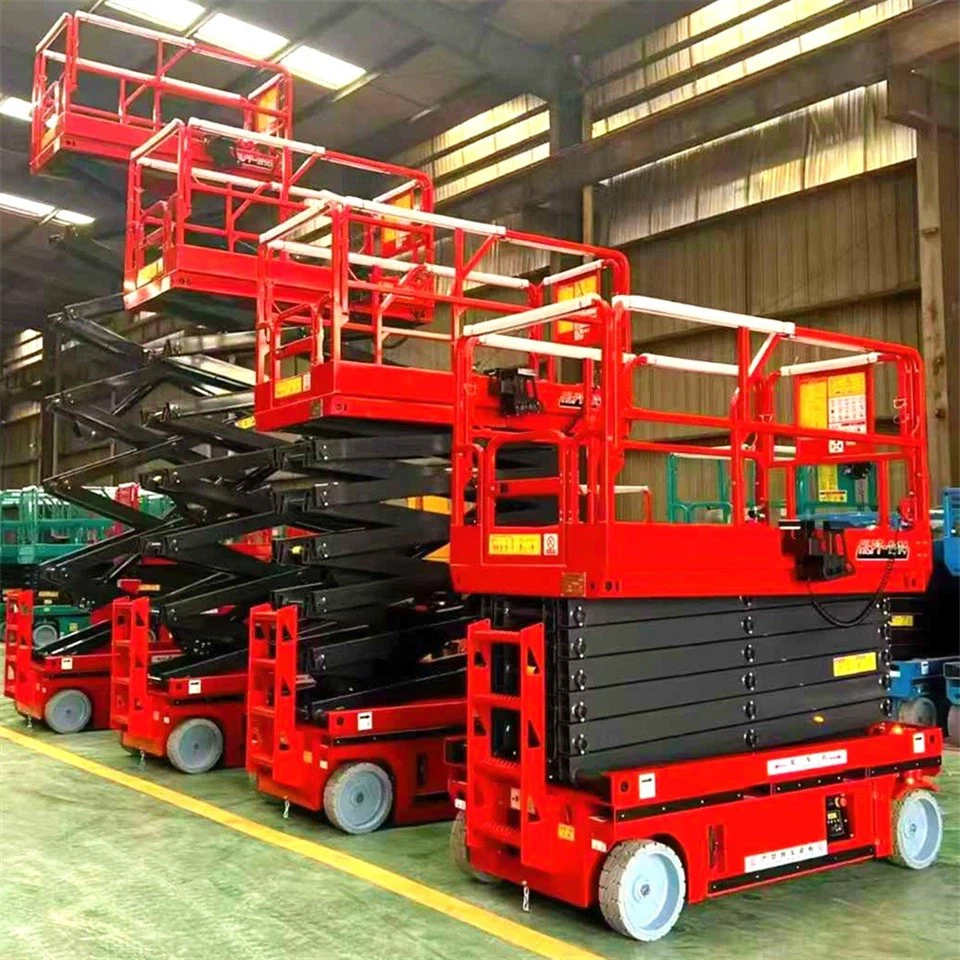

Lithium Battery Scissor Lift

This series of lifting platforms are widely used in cleaning and maintenance of government agencies, power agencies, road administration, advertising, telecommunications, transportation,docks, airports, factories, etc. It is an ideal equipment to improve work efficiency, and it can help you make aerial work safer and more convenient. In order to meet different needs, there are various models.

Send Inquiry

Description

Products Description

The lithium battery scissor lift features an automatic travel function and an integrated design with a built-in battery power source. This allows for smooth lifting and lowering in various working conditions without the need for an external power supply or external traction, and the equipment's travel and steering can be operated by a single person. Operators need only control the joystick at the front of the unit to perform functions such as moving forward, backward, turning, adjusting speed (fast or slow), and raising or lowering the platform. The self-propelled scissor lift offers flexible mobility, convenient operation, and significant labor and effort savings, making high-altitude work more efficient and convenient. It is the ideal high-altitude work equipment for modern enterprises seeking efficient and safe production

Product Parameter

Model		HLPT-0406	HLPT-0608	HLPT-0810	HLPT-1012	HLPT-1214	HLPT-1416	HLPT-1618	HLPT-1820
Maximum platform height	M	4	6	8	10	12	14	16	18
Maximum working height	M	6	8	10	12	14	16	18	20
safe working load	KG	230	320/450	320/450	320	320	320	320	300
Length * width	MM	1460*760	2460*1180	2460*1180	2460*1180	2460*1180	2860*1280	3160*1510	3960*1870
Height(Fence Unfolded/Folded)	MM	2500/1490	2240/1730	2360/1850	2480/1970	2600/2090	2640/2210	2880/2260	2950/2350
Platform extension size	MM	900
wheelbase	MM	1500	1920	1920	1920	1920	2220	2400	3080
Speed	KM/H		3.5
lifting motor	VDC/KM	24/4.5							48/4
charger	VIA	24/15	24/30	24/30	24/30	24/30	34/30	24/30	24/30
gradeability	%		25
Maximum allowable working	°		3
tire	MM	230*80	381*127						400*127
Scissor fork support rod	MM	80404	120805	120805	120805	120805	120806	160805	2001008
Overall weight	KG	800	2100	2450	2700	2950	3700	4300	5100

Product Details

Product feature

Product advantages

High Stability

The reinforced scissor linkage structure and non-slip platform ensure stable positioning even at maximum lifting height, minimizing vibration and tilt during operation.

Flexible Operation

Compact body design allows easy navigation through narrow corridors and confined spaces. The self-propelled system enables one-person operation for quick and precise positioning.

Safety & Reliability

Lithium battery scissor lift equipped with anti-tilt sensors, emergency stop functions, and protective railings. The product has passed the ISO9001 quality management system certification.

Eco-friendly & Quiet

Battery-powered operation produces no exhaust fumes or loud noise, making it ideal for indoor environments such as shopping malls, hospitals, and office buildings.

Product Application

product-750-499

Company Profile

About company

Our company is a manufacturer of lifting platforms integrating R&D, production, manufacturing and sales. we can customize various sizes of hydraulic lifting machinery products according to the different needs of customers, and can undertake OEM and ODM orders.

All products produced by the company have advantages such as high technological content, reasonable structure, safe and stable lifting, large load-bearing capacity, simple operation,and low maintenance costs,.The product has passed international quality system certifications such as CE, ISO, meeting the import needs of different countries.

DIRECT DEAL

Eliminate wholesale pricesfrom intermediaries

CUSTOMIZATION

Experienced production support product customization

AFTER-SALES SERVICE

Lifetime maintenance service after warranty period

OFFICIAL WARRANTY

Receive an official 365-days warranty with your order

product-750-437

Packing & Delivery

product-1500-1094

In order for our customers to receive new and intact goods, we will check the products many times before delivery, and carry out multiple layers of protection and reinforcement.
